Communication Pipeline Series
Microducts HDPE
1. Installation Types: Subdivided Conduit, OverRides, Plow Installations, Trench Installations, Directional Bore, MicroTrench, Tray Installations.
2. Size Range Available(OD/ID MM): 27/20, 22/18, 22/16 , 18/14, 18/10, 16/13, 16/12, 14/10, 12.7/10, 12.7/8, 12/10, 10/8, 8.5/6, 8/6, 5/3.5.
3. Standard Colors: Blue, green, orange, red, yellow, etc.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction

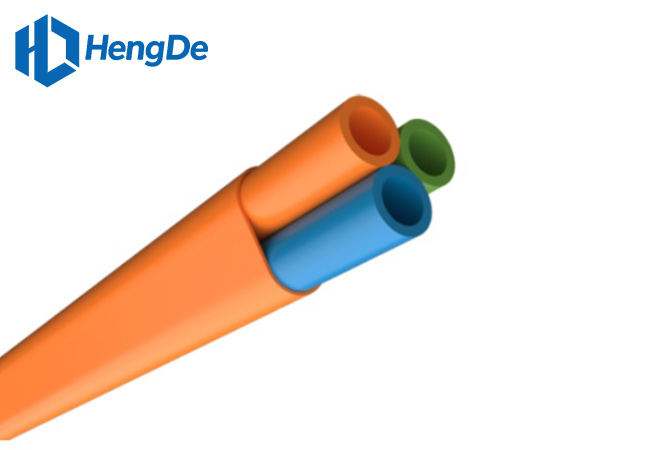

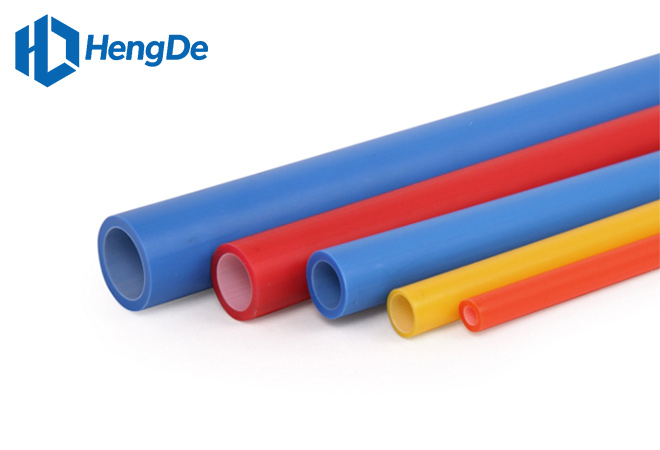

Description of Microducts HDPE

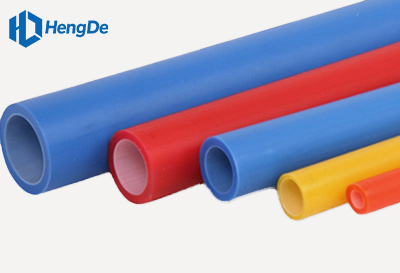

◆ HDPE MicroDucts available from 5mm OD – 27mm OD.
◆ Co-extruded with SILICORE ULF permanent lining to reduce friction on cable installs.

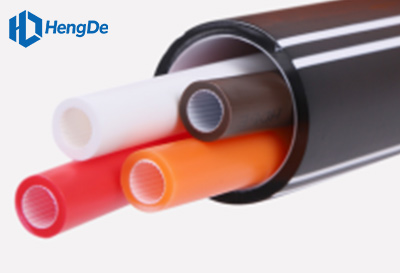

◆ Utilize space in an occupied duct.
◆ Revitalize existing networks with OverRides.
◆ Install up to 432 count fiber MicroCables.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Benefits of Microducts HDPE
✦ SPECIFICATIONS/DETAILS MicroDucts are smaller diameter conduit, manufactured from flexible HDPE.
✦ FILL RATIO Choose the correct MicroDuct size based on the Outer Diameter (OD) of desired MicroCable. Dura-Line recommends a fill ratio of 50% to 75% for optimal cable placement performance. Several factors impact jetting distance including the condition of route, bends, and equipment.
✦ CONDUIT MARKINGS Permanent marking along MicroDuct includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options available.
✦ CO-EXTRUDED Lining SILICORE ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a slick, permanent, interior lining. SILICORE ULF exhibits no loss in performance over time or in extreme temperature conditions.
✦ INTERNAL RIBS Standard (except 3.5mm ID which are designed with a standard smooth interior).
INTERNAL RIBS

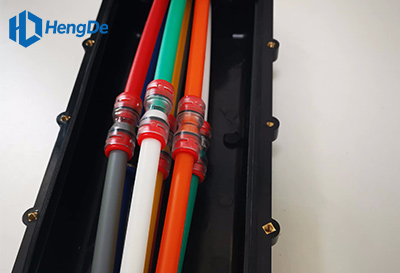

STABLE SPLICING
CO-EXTRUDED SILICORE
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Specification
Microducts Technical Specifications
| MICRODUCT | APPLICATION | NOM OD | MIN ID | WEIGHT | BEND RADUS | BEND RADUS | SWPS (LBS) |
| (MM) | (DB/DI) | (MM/IN) | (MM/IN) | (LB/IN) | SUP (IN) | UNSUP (IN) | |
| 5/3.5 | DI | 5/0.20 | 3.4/0.13 | 0.006 | 2 | 4 | 33 |
| 8/6 | DI | 8/0.31 | 5.8/0.23 | 0.014 | 3 | 6 | 76 |
| 8.5/6 | DI,DB | 8.5/0.34 | 5.9/0.23 | 0.018 | 3 | 7 | 96 |
| 10/8 | DI | 10/0.39 | 8.1/0.32 | 0.018 | 4 | 8 | 93 |
| 12/10 | DI | 12/0.47 | 9.9/0.39 | 0.021 | 5 | 9 | 114 |
| 12.7/8 | DB | 12.7/0.50 | 7.9/0.31 | 0.05 | 5 | 10 | 268 |
| 12.7/10 | DI,DB | 12.7/0.50 | 9.8/0.39 | 0.032 | 5 | 10 | 167 |
| 14/10 | DB | 14/0.55 | 9.8/0.39 | 0.05 | 6 | 11 | 264 |
| 16/12 | DB | 15.9/0.63 | 11.6/0.46 | 0.058 | 6 | 13 | 305 |
| 16/13 | DI | 16/0.63 | 12.8/0.50 | 0.043 | 6 | 13 | 229 |
| 46313 | DB | 18/0.71 | 10/0.39 | 0.11 | 7 | 14 | 581 |
| 18/14 | DB | 18/0.71 | 13.6/0.54 | 0.066 | 7 | 14 | 352 |
| 22/16 | DB | 22/0.87 | 15.4/0.61 | 0.116 | 9 | 18 | 615 |
| 22/18 | DB,DI | 22/0.87 | 18/0.71 | 0.083 | 9 | 17 | 425 |
| 27/20 | DB | 26.7/1.05 | 20.7/0.81 | 0.132 | 11 | 21 | 701 |
† Safe working pull strength is calculated at 80% of tensile or breaking strength.
* Unsupported Bend Radius guidelines should be followed during the installation process. The Supported Bend Radius are post-installation measurements.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
Recommended Fiber Fill Ratios
| MICRODUCT SIZE* (MM) | FIBER COUNT† | FIBER CABLE OD RANGE (MM) |
| 5/3.5 | up to 12 | 1.8 – 2.6 |
| 8.5/6 | up to 96 | 3.0 – 4.5 |
| 10/8 | up to 96 | 4.0 – 6.0 |
| 12.7/10 | up to 144 | 5.0 – 7.5 |
| 14/10 | up to 144 | 5.0 – 7.5 |
| 16/12 | up to 192 | 6.0 – 9.0 |
| 16/13 | up to 288 | 6.5 – 9.8 |
| 18/10 | up to 144 | 5.0 – 7.5 |
| 18/14 | up to 288 | 7.0 – 10.5 |
| 22/16 | up to 432 | 8.0 – 12.0 |
| 22/18 | Up to 432 | 9.0 - 13.5 |
| 27/20 | up to 432 | 10.0 – 15.0 |
* Other sizes available, please contact Customer Service for details
† Fiber count subject to change
| DUCT SIZE | 16MM/13MM | 12.7MM/10MM | 12MM/10MM | 16MM/13MM |
| 1" | 1 | 2 | 2 | 3 |
| 1/4" | 2 | 3 | 4 | 5 |
| 1/2" | 2 | 4 | 6 | 8 |
| 2" | 5 | 7 | 8 | 10 |
Numbers can vary based on the path of the existing conduit, bend radii, elevation changes, distances, and installation method.
Application
APPLICATION(DI/DB) If a MicroDuct size has a thicker wall, it is recommended for direct bury (DB) applications either alone and will maintain optimal fill ratios for faster, easier installations. If the MicroDuct size has a thinner wall, it is optimized for placement inside an existing conduit, like an Over-Ride or populating an existing conduit. The direct install (DI) product is chosen where protection is provided by the existing conduit and space is more sensitive.
