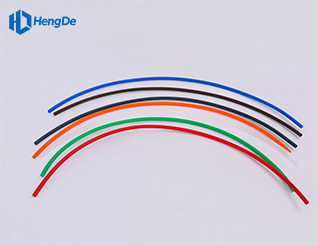

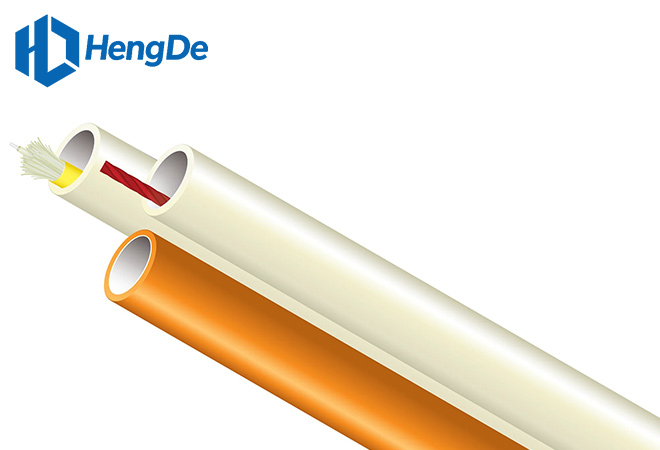

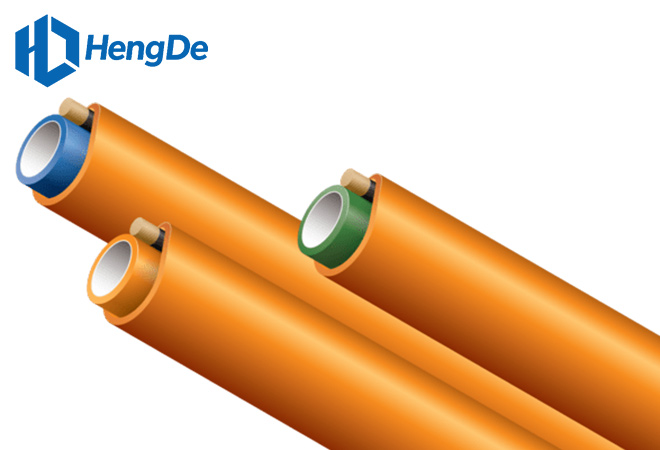

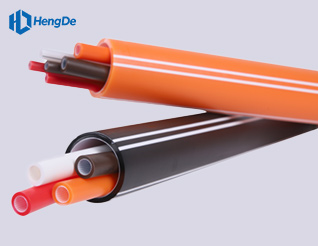

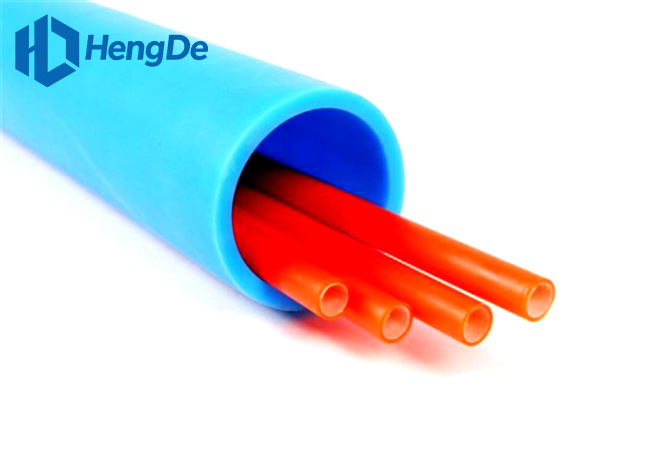

HDPE Microduct Locatable
1. Installation Types: Plow Installations, Trench Installations, Plow Installations, Directional Bore, MicroTrench.
2. Size Range Available(OD/ID MM): 7/4, 8.5/6, 12.7/8, 12.7/10, 14/10, 16/12, 18/10, 18/14, 22/26, 27/20.

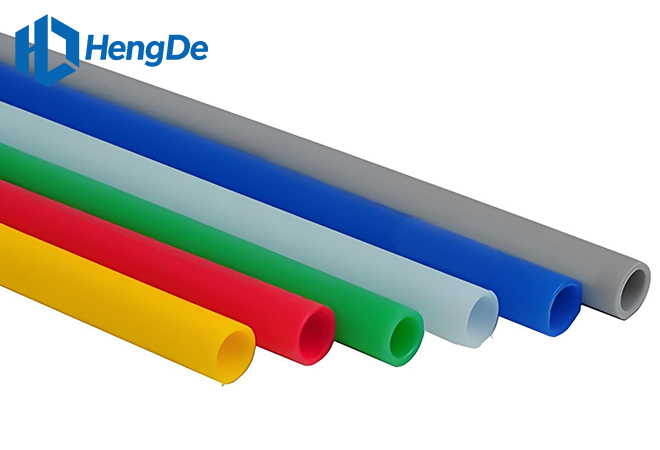

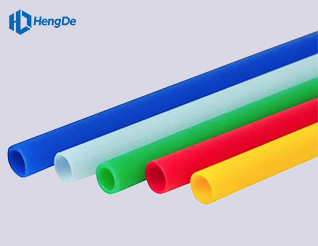

3. Standard Colors: Blue, green, orange, red, yellow, etc.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction
Description of HDPE Microduct Locatable
MicroDucts are smaller diameter conduit, manufactured from flexible HDPE (High Density Polyethylene). SILICORE ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a slick, permanent, interior lining. SILICORE ULF exhibits no loss in performance over time or in extreme temperature conditions. Includes a 20 AWG insulated copper wire. Choose the correct MicroDuct size based on the Outer Diameter (OD) of desired MicroCable. Recommends a fill ratio of 50% to 75% for optimal cable placement performance. Several factors impact jetting distance including the condition of route, bends, and equipment.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Benefits of HDPE Microduct Locatable
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
✦ Locatable MicroDuct drop
✦ Multiple sizes to accommodate a wide variety of fiber cables from 1.2mm - 11mm OD and select flat drops
✦ Larger sizes to fit pre-connectorized drops
✦ Ruggedized with oversheath for harsh conditions
✦ Available in continuous lengths to facilitate placement
✦ Permanent SILICORE ULF lining to reduce friction and ease drop placement
Specification
HDPE Microduct Locatable Technical Specifications
| MICRODUCT | MIN ID | HEIGHT | WIDTH | OVERSHEATH | WEIGHT | BEND | BEND | SWPS |
| SIZE (MM) | (MM/IN) | (MM) | (MM) | (IN) | (LB/FT) | RADIUS SUP (IN) | RADIUS UNSUP (IN) | (LBS) |
| 7/4 | 3.7/0.15 | 9.3 | 7.8 | 0.015 | 0.024 | 4 | 7 | 130 |
| 8.5/6 | 5.9/0.23 | 11.7 | 10.2 | 0.03 | 0.033 | 5 | 10 | 178 |
| 12.7/8 | 7.8/0.31 | 15.2 | 13.5 | 0.015 | 0.061 | 6 | 12 | 328 |
| 12.7/10 | 9.8/0.39 | 15.2 | 13.5 | 0.015 | 0.041 | 6 | 12 | 216 |
| 14/10 | 9.8/0.39 | 16.7 | 15 | 0.02 | 0.065 | 7 | 14 | 346 |
| 16/12 | 11.6/0.46 | 18.8 | 17 | 0.02 | 0.074 | 8 | 16 | 392 |
| 18/10 | 10.0/0.39 | 20.4 | 18.8 | 0.015 | 0.124 | 12 | 20 | 677 |
| 18/14 | 13.6/0.54 | 20.8 | 19.1 | 0.02 | 0.083 | 9 | 18 | 445 |
| 22/16 | 15.5/0.61 | 25 | 23.3 | 0.025 | 0.146 | 15 | 25 | 779 |
| 27/20 | 20.7/0.81 | 29.7 | 27.9 | 0.025 | 0.168 | 18 | 29 | 898 |
† Safe working pull strength is calculated at 80% of tensile or breaking strength.
* Unsupported Bend Radius guidelines should be followed during the installation process. The Supported Bend Radius are post-installation measurements.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
| STANDARD |
| SPECIFICATIONS/DETAILSMicroDucts are smaller diameter conduit, manufactured from flexible HDPE (High Density Polyethylene). Includes a 20 AWG insulated copper wire. |
| FILL RATIOChoose the correct MicroDuct size based on the Outer Diameter (OD) of desired MicroCable. Recommends a fill ratio of 50% to 75% for optimal cable placement performance. Several factors impact jetting distance including the condition of route, bends, and equipment. |
| CONDUIT MARKINGSPermanent marking along MicroDuct includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options available. |
| CO-EXTRUDEDSILICORE ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a slick, permanent, interior lining. SILICORE® ULF exhibits no loss in performance over time or in extreme temperature conditions. |
| INTERNAL RIBSStandard (except 3.5mm ID which are designed with a standard smooth interior. |
| RIP CORDS For easy opening of the oversheath. |
| OPTIONS |
| PRE-INSTALLED STRING Factory pre-installed Pull String available in MicroDucts to aid in cable placement. |
| PRE-INSTALLED FIBER Fiber cable or cordage can be factory pre-installed in MicroDucts. |
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Application
● Highway Communication Projects
As a key component of highway communication systems, can be used used to protect communication optical cables and ensure unobstructed highway communication.
● Railway Communication & Signal Systems
In railway communication and signal systems, can serve as protective sleeves for optical cables, enhancing the reliability of railway communication.
● Urban Underground Utility Tunnel Projects
Amid the construction of urban underground utility tunnels, can be deployed as dedicated pipelines for communication optical cables to realize intensive resource utilization.
