Agricultural Pipe Series

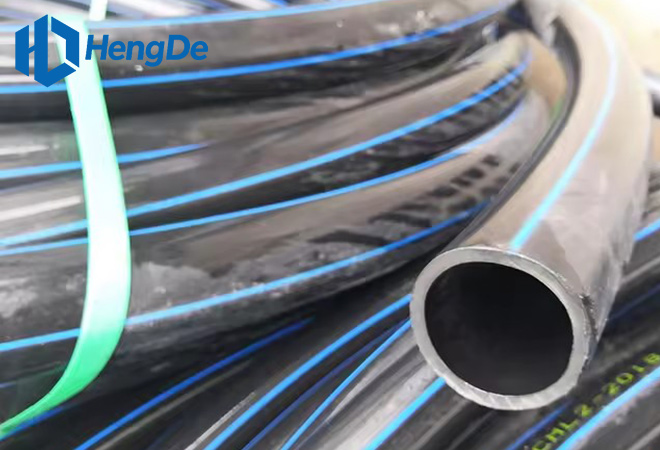

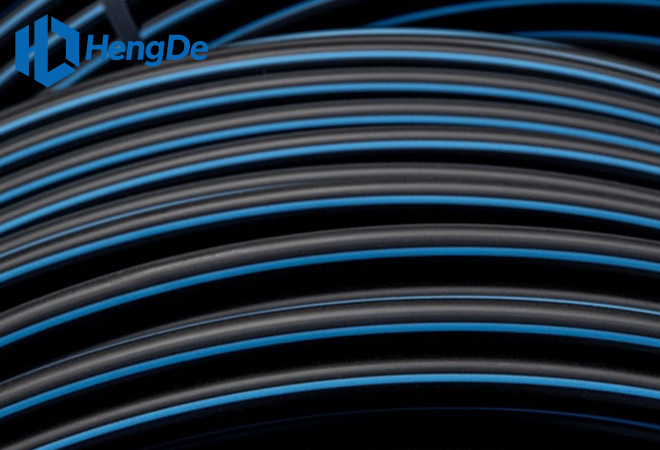

HDPE Agricultural Irrigation Pipe
Standard: ISO 4427-2
1. Size: OD20-1600mm(1/2inch-63inch).
2. Pressure: PN32-SDR6, PN25-SDR7.4, PN20-SDR9, PN16-SDR11, PN12.5-SDR13.6, PN10-SDR17, PN8-SDR21, PN6-SDR26, PN5-SDR33, PN4-SDR41.
3. Material: PE63, PE80, PE100, PE4710, PE3608, PE3408, PE100RC.

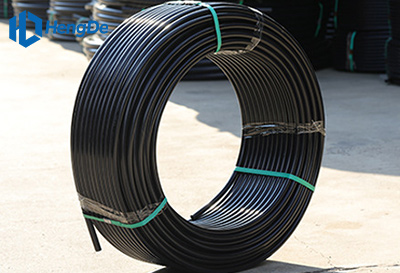

4. Length: 5.8M/11.8M. Coil Length 100m-200m A Roll for DN20-90mm.
5. Applications: Water Supply, Mining, Dredging, Marine, Irrigation, Industry, Chemical and Drainage for Municipal Gardens etc.
6. Standard: ISO 4427, GB/T 13663, EN 12201, AS/NZS 4130, DIN 8074/8075, GOST 18599, DIPS, IPS, ASTM 3035, ASTM F714, etc.
7. Delivery: 10-20 days depending on the total quantity.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction

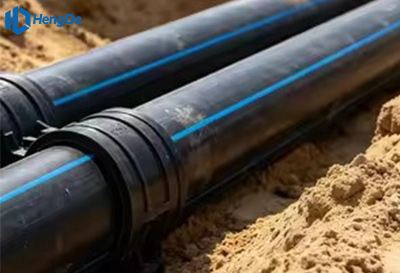

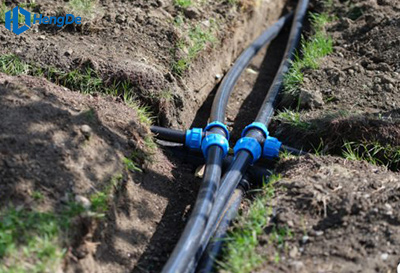

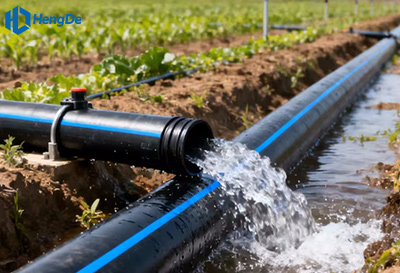

HDPE pipes play a crucial role in agricultural irrigation systems. Compared with traditional metal pipes, HDPE pipes boast superior corrosion resistance and durability, and can withstand higher pressure. This allows farmers to build more reliable and stable irrigation systems, ensuring a steady water supply for crops. In addition, HDPE pipes feature a low friction coefficient, which reduces water flow resistance and enhances irrigation efficiency.
Description of HDPE (High Density Polyethylene) Agricultural Irrigation Pipe
Efficiency, sustainability and resource management are essential components of modern agriculture. High-density polyethylene (HDPE) pipes are gaining growing popularity among contemporary farmers, thanks to their versatility and durability in agricultural applications. Their uses in the agricultural sector are extensive, ranging from optimizing water distribution and improving waste management to upgrading irrigation systems. HDPE pipes are highly durable tubing manufactured from high-density polyethylene, a type of thermoplastic polymer. They are widely adopted across diverse industries, especially agriculture, due to their outstanding durability, versatility, as well as resistance to corrosion and chemical damage.
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Benefits of (High Density Polyethylene) Agricultural Irrigation Pipe
HDPE pipes are ideal for agricultural applications due to their exceptional reliability and durability, which helps cut down the operational and maintenance costs typically associated with agricultural piping systems.
Common reasons why farmers opt for HDPE pipes in agricultural applications include:
Why Xinhengde?

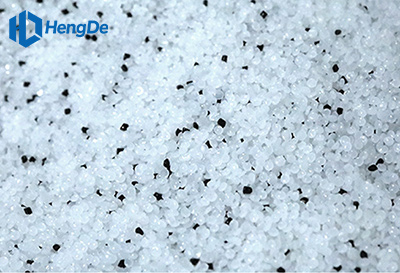

Use brand-new raw materials for a safe and reliable product.
Why Xinhengde?

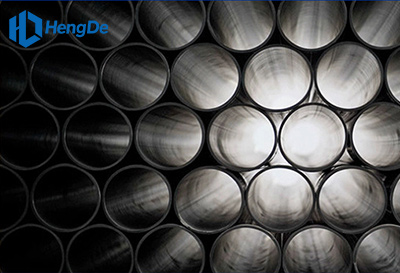

Uniform wall thickness; smooth and shiny inner and outer surfaces.
Why Xinhengde?
Strong toughness, no deformation under pressure, rebound without rupture.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Corrosion resistance&UV resistance
Superior durability and damage resistance
Excellent flexibility and ease of installation
Lower repair and replacement costs
Minimal water leakage and a 10% improvement in water delivery efficiency
Higher flow rate and stable pressure for faster delivery of clean water to crops
Specification
| ISO 4427-2-2019 | ||||||||||||||||||||
| SDR 6 | SDR 7.4 | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 | SDR 41 | |||||||||||
| S 2.5 | S 3.2 | S 4 | S 5 | S 6.3 | S 8 | S 10 | S 12.5 | S 16 | S 20 | |||||||||||
| Nominal pressure (PN) bar | ||||||||||||||||||||
| PE 40 | - | PN 10 | PN 8 | PN 6 | PN 5 | PN 4 | PN 3.2 | PN 2.5 | - | - | ||||||||||
| PE 80 | PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | PN 4 | PN 3.2 | ||||||||||
| PE 100 | - | PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | PN 4 | ||||||||||
| Nominal size | Wall Thicknessb | |||||||||||||||||||
| Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | Min T.W. | Max T.W. | |
| 16 | 3 | 3.4 | 2.3a | 2.7 | 2.0a | 2.3 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 20 | 3.4 | 3.9 | 3 | 3.4 | 2.3a | 2.7 | 2.0a | 2.3 | - | - | - | - | - | - | - | - | - | - | - | - |
| 25 | 4.2 | 4.8 | 3.5 | 4 | 3 | 3.4 | 2.3a | 2.7 | 2.0a | 2.3 | - | - | - | - | - | - | - | - | - | - |
| 32 | 5.4 | 6.1 | 4.4 | 5 | 3.6 | 4.1 | 3 | 3.4 | 2.4a | 2.8 | 2.0a | 2.3 | - | - | - | - | - | - | - | - |
| 40 | 6.7 | 7.5 | 5.5 | 6.2 | 4.5 | 5.1 | 3.7 | 4.2 | 3 | 3.4 | 2.4a | 2.8 | 2.0a | 2.3 | - | - | - | - | - | - |
| 50 | 8.3 | 9.3 | 6.9 | 7.7 | 5.6 | 6.3 | 4.6 | 5.2 | 3.7 | 4.2 | 3 | 3.4 | 2.4a | 2.8 | 2.0a | 2.3 | - | - | - | - |
| 63 | 10.5 | 11.7 | 8.6 | 9.6 | 7.1 | 8 | 5.8 | 6.5 | 4.7 | 5.3 | 3.8 | 4.3 | 3 | 3.4 | 2.5a | 2.9 | - | - | - | - |
| 75 | 12.5 | 13.9 | 10.3 | 11.5 | 8.4 | 9.4 | 6.8 | 7.6 | 5.6 | 6.3 | 4.5 | 5.1 | 3.6 | 4.1 | 2.9a | 3.3 | - | - | - | - |
| 90 | 15 | 16.7 | 12.3 | 13.7 | 10.1 | 11.3 | 8.2 | 9.2 | 6.7 | 7.5 | 5.4 | 6.1 | 4.3 | 4.9 | 3.5 | 4 | - | - | - | - |
| 110 | 18.3 | 20.3 | 15.1 | 16.8 | 12.3 | 13.7 | 10 | 11.1 | 8.1 | 9.1 | 6.6 | 7.4 | 5.3 | 6 | 4.2 | 4.8 | - | - | - | - |
| 125 | 20.8 | 23 | 17.1 | 19 | 14 | 15.6 | 11.4 | 12.7 | 9.2 | 10.3 | 7.4 | 8.3 | 6 | 6.7 | 4.8 | 5.4 | - | - | - | - |
| 140 | 23.3 | 25.8 | 19.2 | 21.3 | 15.7 | 17.4 | 12.7 | 14.1 | 10.3 | 11.5 | 8.3 | 9.3 | 6.7 | 7.5 | 5.4 | 6.1 | - | - | - | - |
| 160 | 26.6 | 29.4 | 21.9 | 24.2 | 17.9 | 19.8 | 14.6 | 16.2 | 11.8 | 13.1 | 9.5 | 10.6 | 7.7 | 8.6 | 6.2 | 7 | - | - | - | - |
| 180 | 29.9 | 33 | 24.6 | 27.2 | 20.1 | 22.3 | 16.4 | 18.2 | 13.3 | 14.8 | 10.7 | 11.9 | 8.6 | 9.6 | 6.9 | 7.7 | ||||
| 200 | 33.2 | 36.7 | 27.4 | 30.3 | 22.4 | 24.8 | 18.2 | 20.2 | 14.7 | 16.3 | 11.9 | 13.2 | 9.6 | 10.7 | 7.7 | 8.6 | ||||
| 225 | 37.4 | 41.3 | 30.8 | 34 | 25.2 | 27.9 | 20.5 | 22.7 | 16.6 | 18.4 | 13.4 | 14.9 | 10.8 | 12 | 8.6 | 9.6 | ||||
| 250 | 41.5 | 45.8 | 34.2 | 37.8 | 27.9 | 30.8 | 22.7 | 25.1 | 18.4 | 20.4 | 14.8 | 16.4 | 11.9 | 13.2 | 9.6 | 10.7 | ||||
| 280 | 46.5 | 51.3 | 38.3 | 42.3 | 31.3 | 34.6 | 25.4 | 28.1 | 20.6 | 22.8 | 16.6 | 18.4 | 13.4 | 14.9 | 10.7 | 11.9 | ||||
| 315 | 52.3 | 57.7 | 43.1 | 47.6 | 35.2 | 38.9 | 28.6 | 31.6 | 23.2 | 25.7 | 18.7 | 20.7 | 15 | 16.6 | 12.1 | 13.5 | 9.7 | 10.8 | 7.7 | 8.6 |
| 355 | 59 | 65 | 48.5 | 53.5 | 39.7 | 43.8 | 32.2 | 35.6 | 26.1 | 28.9 | 21.1 | 23.4 | 16.9 | 18.7 | 13.6 | 15.1 | 10.9 | 12.1 | 8.7 | 9.7 |
| 400 | - | - | 54.7 | 60.3 | 44.7 | 49.3 | 36.3 | 40.1 | 29.4 | 32.5 | 23.7 | 26.2 | 19.1 | 21.2 | 15.3 | 17 | 12.3 | 13.7 | 9.8 | 10.9 |
| 450 | - | - | 61.5 | 67.8 | 50.3 | 55.5 | 40.9 | 45.1 | 33.1 | 36.6 | 26.7 | 29.5 | 21.5 | 23.8 | 17.2 | 19.1 | 13.8 | 15.3 | 11 | 12.2 |
| 500 | - | - | - | - | 55.8 | 61.5 | 45.4 | 50.1 | 36.8 | 40.6 | 29.7 | 32.8 | 23.9 | 26.4 | 19.1 | 21.2 | 15.3 | 17 | 12.3 | 13.7 |
| 560 | - | - | - | - | 62.5 | 68.9 | 50.8 | 56 | 41.2 | 45.5 | 33.2 | 36.7 | 26.7 | 29.5 | 21.4 | 23.7 | 17.2 | 19.1 | 13.7 | 15.2 |
| 630 | - | - | - | - | 70.3 | 77.5 | 57.2 | 63.1 | 46.3 | 51.1 | 37.4 | 41.3 | 30 | 33.1 | 24.1 | 26.7 | 19.3 | 21.4 | 15.4 | 17.1 |
| 710 | - | - | - | - | 79.3 | 87.4 | 64.5 | 71.1 | 52.2 | 57.6 | 42.1 | 46.5 | 33.9 | 37.4 | 27.2 | 30.1 | 21.8 | 24.1 | 17.4 | 19.3 |
| 800 | - | - | - | - | 89.3 | 98.4 | 72.6 | 80 | 58.8 | 64.8 | 47.4 | 52.3 | 38.1 | 42.1 | 30.6 | 33.8 | 24.5 | 27.1 | 19.6 | 21.7 |
| 900 | - | - | - | - | - | - | 81.7 | 90 | 66.1 | 73 | 53.3 | 58.8 | 42.9 | 47.3 | 34.4 | 38.3 | 27.6 | 30.5 | 22 | 24.3 |
| 1000 | - | - | - | - | - | - | 90.8 | 100 | 73.5 | 80.9 | 59.3 | 65.4 | 47.7 | 52.6 | 38.2 | 42.2 | 30.6 | 33.5 | 24.5 | 27.1 |
| 1200 | - | - | - | - | - | - | - | - | 88.2 | 97.2 | 71.1 | 74.8 | 57.2 | 63.1 | 45.9 | 50.6 | 36.7 | 40.5 | 29.4 | 32.5 |
| 1400 | - | - | - | - | - | - | - | - | 102.8 | 113.3 | 83 | 90.8 | 66.7 | 73.5 | 53.5 | 59 | 42.9 | 47.3 | 34.3 | 37.9 |
| 1600 | - | - | - | - | - | - | - | - | 117.5 | 129.5 | 94.8 | 103.7 | 76.2 | 84 | 61.2 | 67.5 | 49 | 54 | 39.2 | 43.3 |
| 1800 | - | - | - | - | - | - | - | - | - | - | 106.6 | 116.6 | 85.8 | 94.4 | 68.8 | 76.2 | 55.1 | 60.1 | 44 | 48.3 |
| 2000 | - | - | - | - | - | - | - | - | - | - | 118.5 | 129.5 | 95.3 | 104.9 | 76.4 | 84.7 | 61.2 | 66.8 | 48.9 | 53.8 |
| 2250 | - | - | - | - | - | - | - | - | - | - | - | - | 107.2 | 118.1 | 86 | 94.8 | 68.9 | 75.9 | 55 | 60.7 |
| 2500 | - | - | - | - | - | - | - | - | - | - | - | - | 119.1 | 131.2 | 95.5 | 105.2 | 76.5 | 84.3 | 61.2 | 67.5 |
| 2800 | - | - | - | - | - | - | - | - | - | - | - | - | 133.4 | 146.9 | 107 | 117.8 | 85.7 | 94.4 | 68.5 | 75.5 |
| 3000 | - | - | - | - | - | - | - | - | - | - | - | - | 142.9 | 157.3 | 114.6 | 126.2 | 91.8 | 101.1 | 73.4 | 80.9 |
| NOTE1 1 bar= 0.1 MPa= 105 Pa; 1 MPa= 1 N/mm2. NOTE2 PN values are based on C= 1.25. NOTE3 Tolerances in accordance with ISO 11922-1:2018, grade V, calculated from (0.1Min T.W. + 0.1) mm rounded upto the next 0.1 mm. For certain applications for Min T.W.> 30 mm, ISO 11922-1:2018, grade T, tolerances may be used calculated from 0.15 Min T.W., rounded up to the next 0.1 mm. NOTE4 The calculated value of emin accrdingto ISO 4065:2018 is rounded up to the nearest value of either 2.0, 2.3 or 3.0. a For practicalreasons.a minimm wallthicknes of 3.0 mm is reommended for electrofusion jointing and jointing with but fusion fitings and for lining applications. |
||||||||||||||||||||
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
| Characteristic | Requirement | Test parameters | Test method(s) | |
| Parameter | Value | |||
| Elongation at break for e u≤ 5 mm | ≥350 % | Test piece shape | Type 2 | ISO 6259-1 ISO 6259-3 |
| Test speed | 100 mm/min | |||
| Number of test pieces | According to ISO 6259 | |||
| Elongation at break for 5 mm < e u 12 mm | ≥ 350 % | Test piece shape | Type 1 | ISO 6259-1 ISO 6259-3 |
| Test speed | 50 mm/min | |||
| Number of test pieces | According to ISO 6259 | |||
| Elongation at break for e > 12 mm | ≥ 350 % | Test piece shape | Type 1 | ISO 6259-1 ISO 6259-3 |
| Test speed | 25 mm/min | |||
| Number of test pieces | According to ISO 6259 | |||
| OR | ||||
| Test piece shape | Type 3 | |||
| Test speed | 10 mm/min | |||
| Number of test pieces | According to ISO 6259 | |||
| Longitudinal reversion | u 3 % No effect on surface | Shape and number of test pieces | According to ISO 2505 | ISO 2505 |
| Test temperature: | ||||
| PE 40 | 100 ± 2 °C | |||
| PE 63, PE 80, PE 100 | 110 ± 2 °C | |||
| Time | See ISO 2505 | |||
| Melt mass-flow rate MFR for PE 40 | Change of MFR by processing ± 20 % d | Load | 2,16 kg | ISO 1133:2005, Condition D |
| Test temperature | 190 °C | |||
| Time | 10 min | |||
| Number of test pieces | According to ISO 1133 | |||
| Melt mass-flow rate MFR for PE 63, PE 80, PE 100 | Change of MFR by processing ± 20 % d | Load | 5,0 kg | ISO 1133:2005,Condition T |
| Test temperature | 190 °C | |||
| Time | 10 min | |||
| Number of test pieces | According to ISO 1133 | |||
| Oxidation induction time | ≥20 min | Test temperature | 200 °C | ISO 11357-6:2002 |
| Number of test pieces | 3 | |||
| Effect on water quality | National regulations apply | |||
| Hydrostatic strength at 20 °C |
No failure of any test piece during test period | End caps | Type a | ISO 1167-1 ISO 1167-2 |
| Conditioning period | According to ISO 1167-1 | |||
| Number of test pieces | 3 | |||
| Type of test | Water-in-water | |||
| Test temperature | 20 °C | |||
| Test period | 100 h | |||
| Circumferential (hoop) stress for： |
||||
| PE 40 | 7.0 MPa | |||
| PE 63 | 8.0 MPa | |||
| PE 80 | 10.0 MPa | |||
| PE 100 | 12.4 MPa | |||
| Hydrostatic strength at 80 °C |
No failure of any test piece during test period | End caps | Type a | ISO 1167-1 ISO 1167-2 |
| Conditioning period | According to ISO 1167-1 | |||
| Number of test pieces | 3 | |||
| Type of test | Water-in-water | |||
| Test temperature | 80 °C | |||
| Test period | 165 h | |||
| Circumferential (hoop) stress for： |
||||
| PE 40 | 2.5 MPa | |||
| PE 63 | 3.5 MPa | |||
| PE 80 | 4.5 MPa | |||
| PE 100 | 5.4 MPa | |||
| Hydrostatic strength at 80 °C |
No failure of any test piece during test period | End caps | Type a | ISO 1167-1 ISO 1167-2 |
| Conditioning period | According to ISO 1167-1 | |||
| Number of test pieces | 3 | |||
| Type of test | Water-in-water | |||
| Test temperature | 80 °C | |||
| Test period | 1000 h | |||
| Circumferential (hoop) stress for： |
||||
| PE 40 | 2.0 MPa | |||
| PE 63 | 3.2 MPa | |||
| PE 80 | 4.0 MPa | |||
| PE 100 | 5.0 MPa | |||
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Application
High-Density Polyethylene (HDPE) pipes are the ideal piping material choice for applications including drinking water supply, wastewater management, mining operations, industrial fluid transfer systems, power engineering, communications infrastructure, agricultural irrigation, fire protection systems, marine aquaculture, dredging projects, and oil and gas distribution.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
