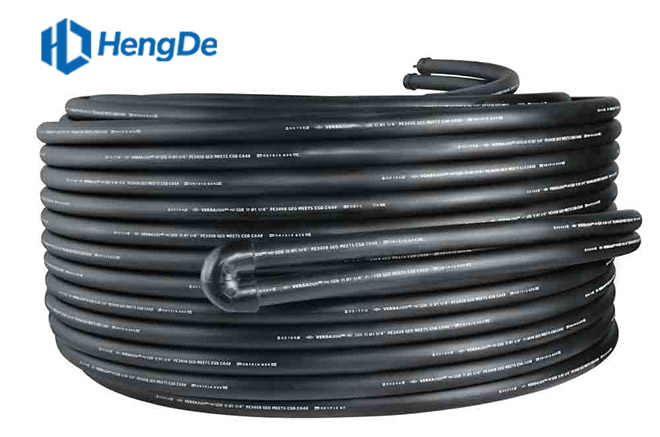

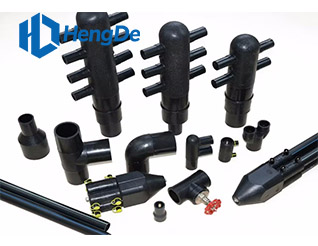

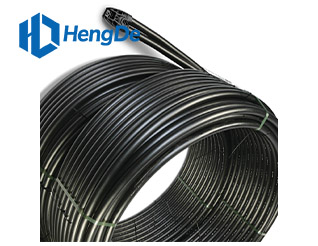

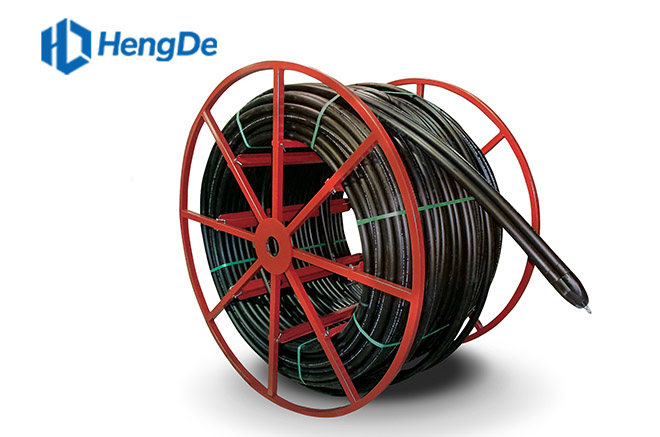

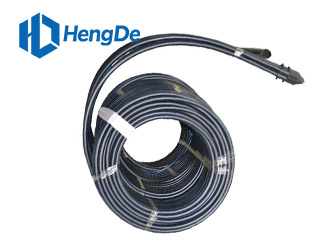

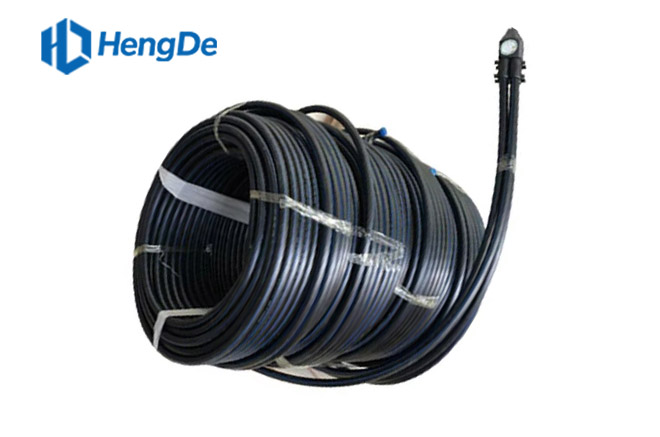

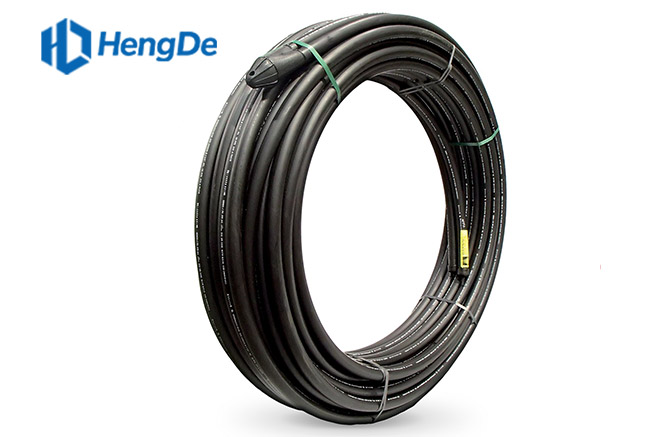

Ground Source Heat Pump Pipe
CJ 317-2009
1.Size : OD25-355mm(3/4inch-14inch).
2.Pressure: PN16-SDR11, PN12.5-SDR13.6, PN10-SDR17.
3.Material: PE100.
4.Length: 5.8M/11.8M. Coil Length 100m-200m A Roll for DN25-90mm.
5.Applications: Water Supply, Irrigation, Drainage for Municipal Gardens etc.
6.Standard: ISO 4427, GB/T 13663.
7.Delivery: 10-20 days depending on the total quantity.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction
Geothermal pipes transfer heat from the ground into a building to provide space heating and preheat domestic hot water. Geothermal heat exchange is a clean energy method for heating and cooling commercial and residential buildings. This technology has been proven effective and widely applied for decades.

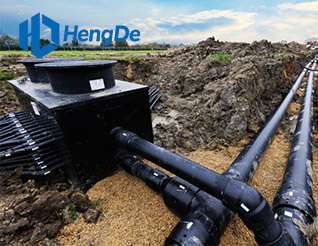

In simplest terms, HDPE pipes are buried underground, enabling energy transfer between the fluid inside the pipes and the earth. The fluid in the pipes is warmed in winter and cooled in summer. The entire system consists of buried HDPE pipes, a heat pump, and an air distribution system.
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Description of HDPE (High Density Polyethylene) Ground Source Heat Pump Pipe
Geothermal pipes transfer heat from the ground into a building to provide space heating and preheat domestic hot water. Geothermal heat exchange is a clean energy method for heating and cooling commercial and residential buildings. This technology has been proven effective and widely applied for decades.
In simplest terms, HDPE pipes are buried underground, enabling energy transfer between the fluid inside the pipes and the earth. The fluid in the pipes is warmed in winter and cooled in summer. The entire system consists of buried HDPE pipes, a heat pump, and an air distribution system.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Specification
| CJ/T 317-2009 | |||
| Norminal Diameter DN(mm) | Nominal Wall Thickness (mm) | ||
| Standard Size Ratio (SDR) | |||
| SDR17 | SDR13.6 | SDR11 | |
| Nominal Pressure PN/MPa | |||
| 1.0 | 1.25 | 1.60 | |
| 25 | - | 2.0 | 2.3 |
| 32 | 2.0 | 2.4 | 3.0 |
| 40 | 2.4 | 3.0 | 3.7 |
| 50 | 3.0 | 3.7 | 4.6 |
| 63 | 3.8 | 4.7 | 5.8 |
| 75 | 4.5 | 5.6 | 6.8 |
| 90 | 5.4 | 6.7 | 8.2 |
| 110 | 6.6 | 8.1 | 10.0 |
| 125 | 7.4 | 9.2 | 11.4 |
| 140 | 8.3 | 10.3 | 12.7 |
| 160 | 9.5 | 11.8 | 14.6 |
| 180 | 10.7 | 13.3 | 16.4 |
| 200 | 11.9 | 14.7 | 18.2 |
| 225 | 13.4 | 16.6 | 20.5 |
| 250 | 14.8 | 18.4 | 22.7 |
| 280 | 16.6 | 20.6 | 25.4 |
| 315 | 18.7 | 23.2 | 28.6 |
| 355 | 21.1 | 26.1 | 32.2 |
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
| CJ/T 317-2009 | |||
| Performance | Requirement | Experimental Parameter | |
| 1 | Hydrostatic strength （20℃，100h） |
No damage, no leakage | Ring stress 12.4MPa |
| 2 | Hydrostatic strength （80℃，165h） |
No damage, no leakage | Ring stress 5.5MPa |
| 3 | Hydrostatic strength （80℃，1000h） |
No damage, no leakage | Ring stress 5.0MPa |
| 4 | Melt mass flow rate(MFR) | The change in MFR before and after processing (not greater than20%） |
Test temperature:190 ℃ |
| Unsprung Weight:5Kg | |||
| 5 | Elongation at breaken/% | ≥350 | Test temperature:230 ℃ |
| 6 | Longitudinal shrinkage rate/% | ≤3 | Test temperature:110 ℃ |
| 7 | Oxidation induction time（OIT)min | ≥20 | Test temperature:220 ℃ |
| 8 | Heat conductivity coefficient(W(m.K)) | ≥0.6 | - |
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
