Water Supply Pipe Series

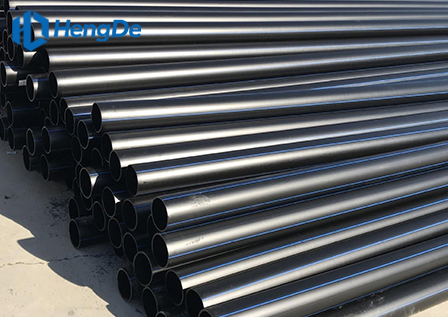

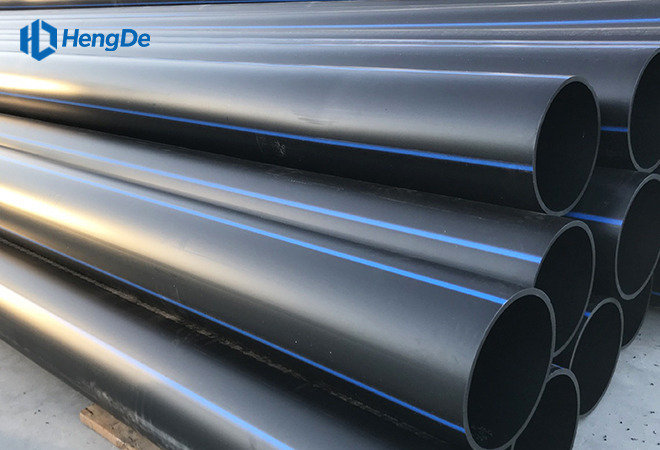

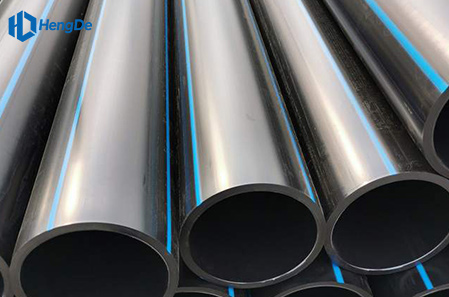

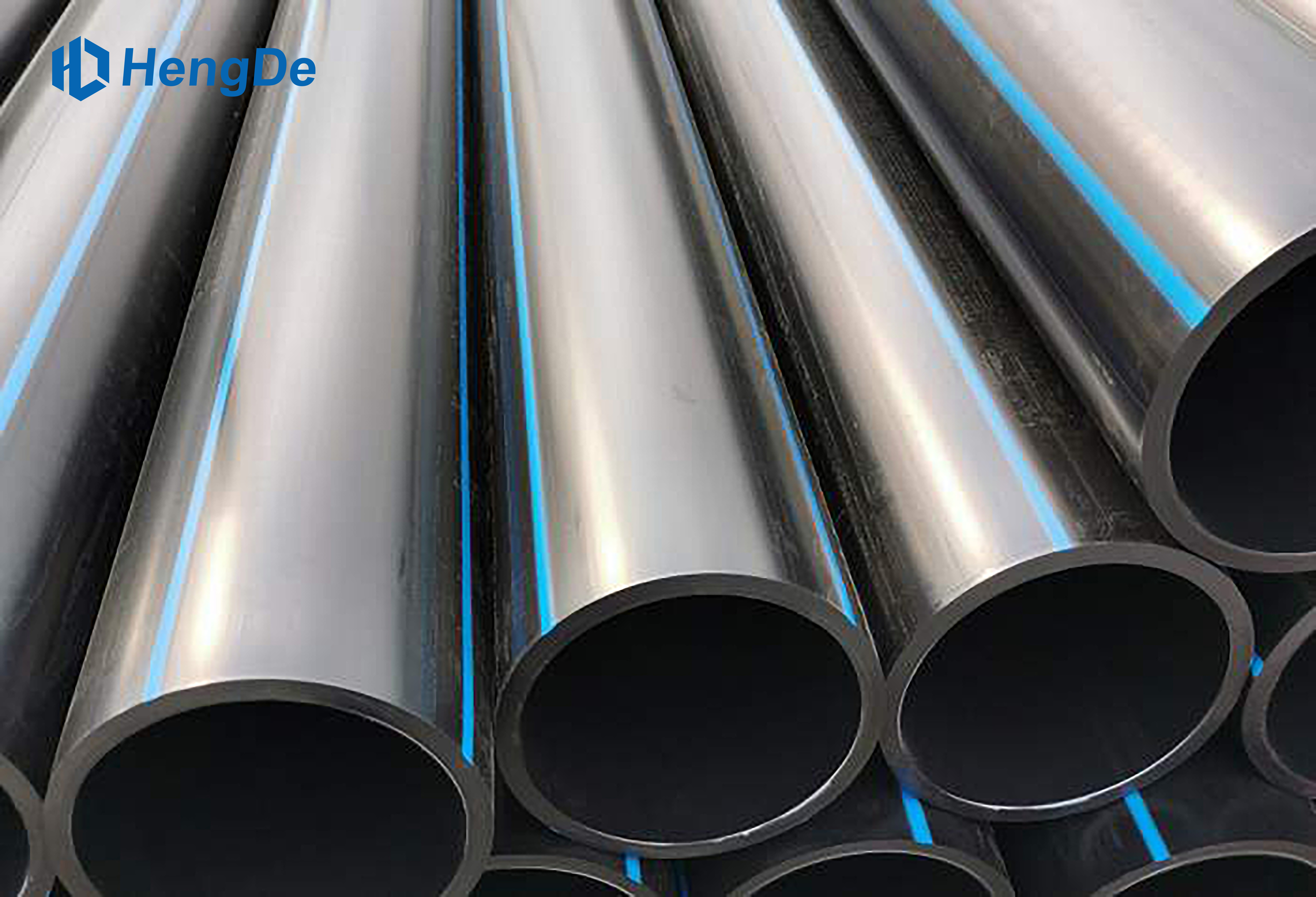

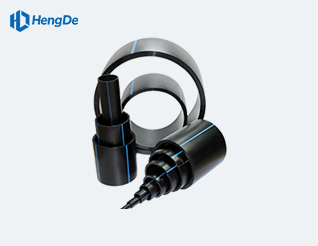

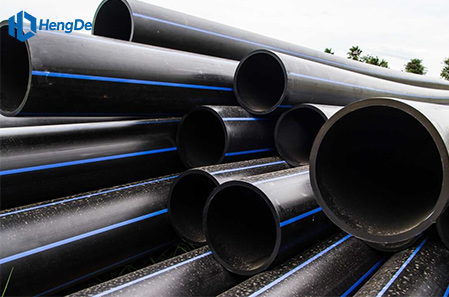

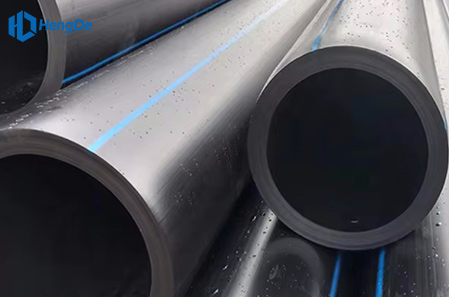

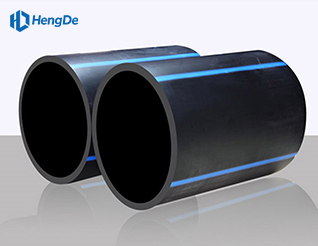

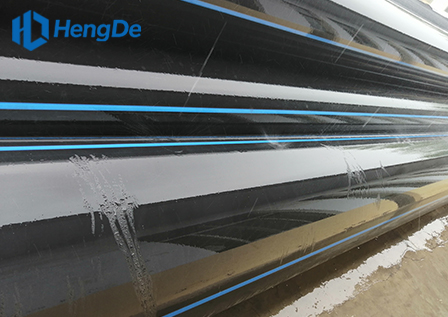

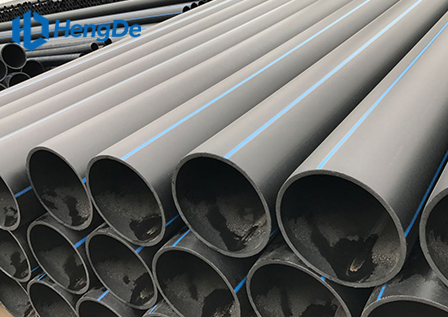

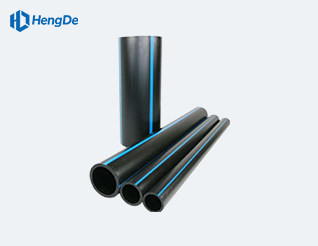

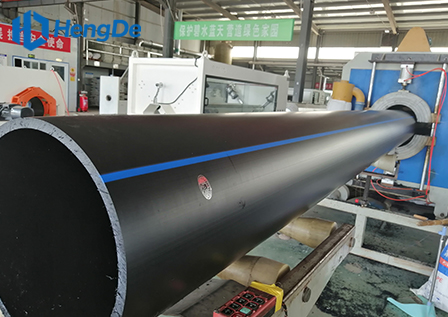

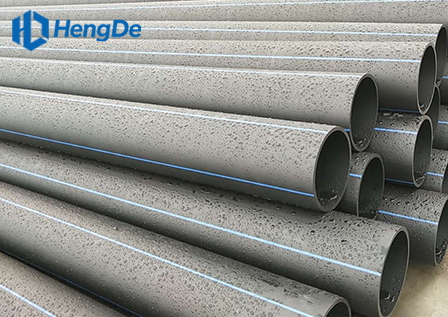

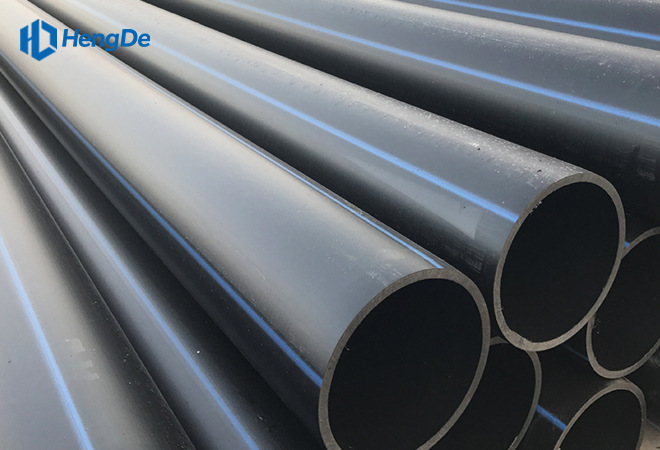

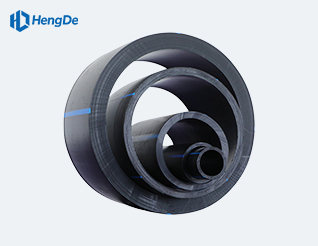

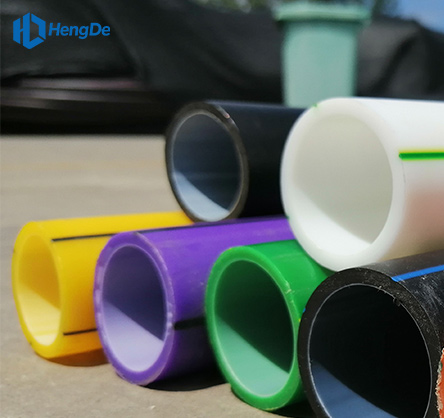

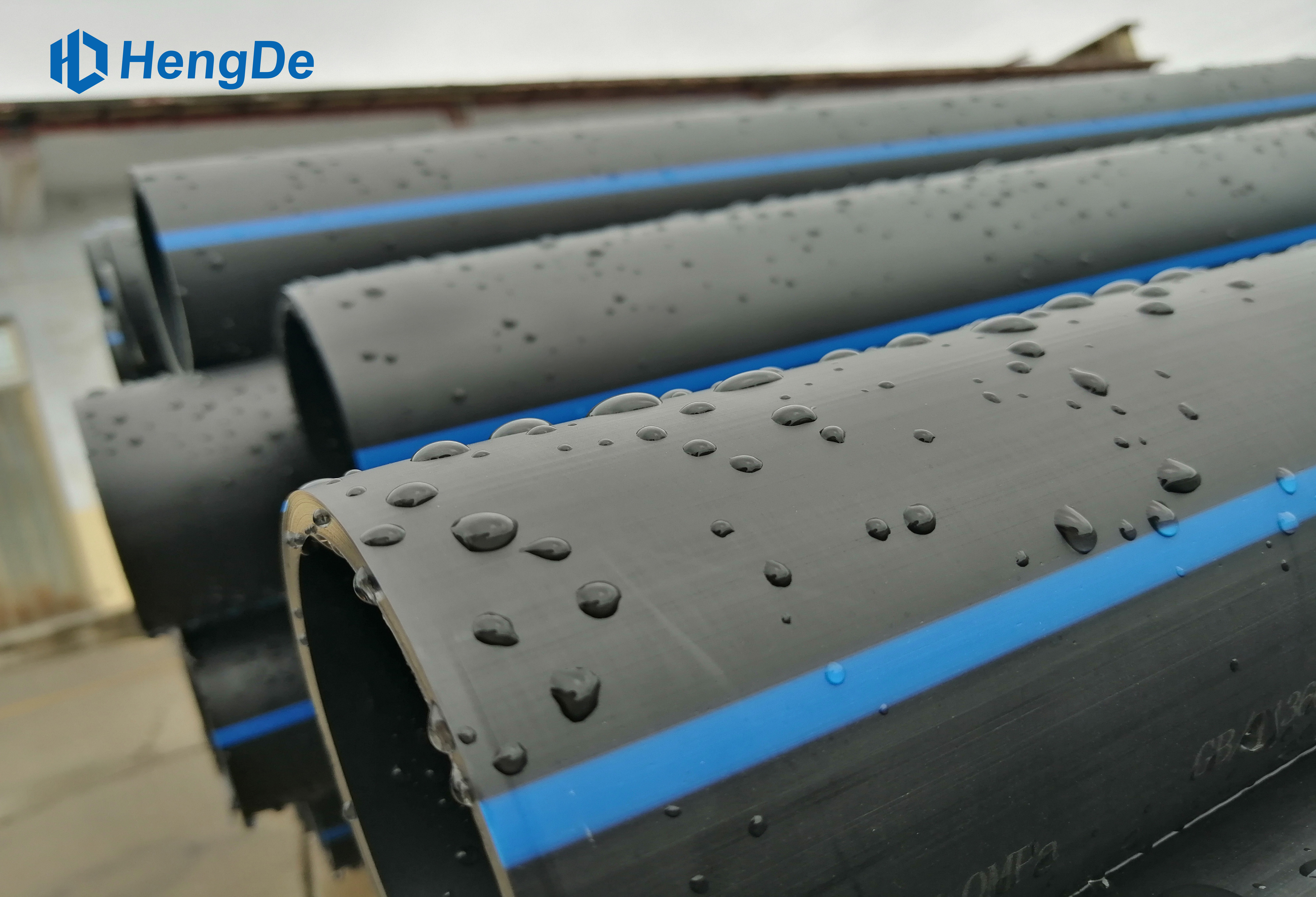

HDPE Water Supply Pipe
Standard: GB/T 13663.2-2018
1. Size: OD20-1600mm(1/2inch-63inch).
2. Pressure: PN32-SDR6, PN25-SDR7.4, PN20-SDR9, PN16-SDR11, PN12.5-SDR13.6, PN10-SDR17, PN8-SDR21, PN6-SDR26, PN5-SDR33, PN4-SDR41.
3. Material: PE63, PE80, PE100, PE4710, PE3608, PE3408, PE100RC.

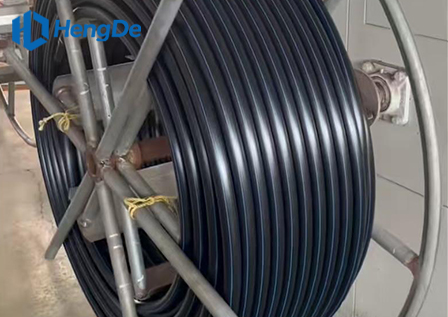

4. Length: 5.8M/11.8M. Coil Length 100m-200m A Roll for DN20-90mm.
5. Applications: Water Supply, Mining, Dredging, Marine, Irrigation, Industry, Chemical and Drainage for Municipal Gardens etc.
6. Standard: ISO 4427, GB/T 13663, EN 12201, AS/NZS 4130, DIN 8074/8075, GOST 18599, DIPS, IPS, ASTM 3035, ASTM F714, etc.
7. Delivery: 10-20 days depending on the total quantity.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction

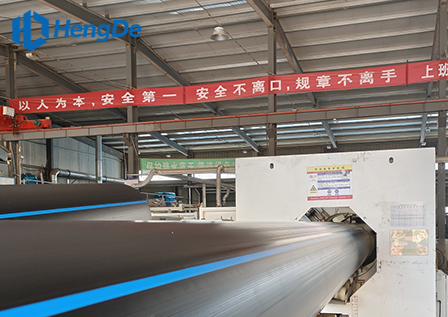

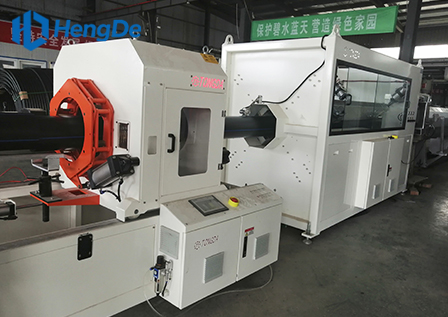

The full form of HDPE is High-Density Polyethylene. HDPE pipes are made through a process known as extrusion. In this process, HDPE material is heated to a semi-molten state and then forced through a die to form a tube. The tube is then cooled to solidify the material and cut to the desired length. This process ensures consistent quality and high durability of the final product. Thus, the final product is a high-quality, flexible, and durable pipe that can be used for a variety of applications. HDPE pipes are widely used in water supply, gas distribution, sewage and drainage systems, and industrial processes.
Description of HDPE (High Density Polyethylene) Water Supply Pipe
HDPE pipe, also known as high-density polyethylene pipe, is made of HDPE granular material and is a flexible plastic pipe used for fluid and gas transportation.
As a sturdy and safe component for potable water systems, HDPE piping helps deliver clean drinking water in many applications. When used correctly and under the right conditions, HDPE pipes are the most durable and flexible option available.
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Benefits of (High Density Polyethylene) Water Supply Pipe
The right piping materials must be chosen in the domain of potable water supply to guarantee the safety, reliability, and durability of infrastructure. High-density polyethylene (HDPE) has become the preferred choice for water distribution systems because it is highly resistant to corrosion, chemicals, and environmental stressors.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Environmental stresses such as corrosion and chemical attack do not significantly affect HDPE pipes. They have a service life of up to 50 years.
Larger-diameter HDPE pipes can handle a wide range of pressure ratings, usually around 1,000 psi.
HDPE’s inherent flexibility makes its installation easier, particularly for trenchless construction practices.
Since HDPE pipes are connected by butt welding and electro-fusion welding, they are leak-proof.
With a pH resistance range of 1 to 14, HDPE pipes are highly resistant to various chemicals, which means they will not degrade when conveying potable water containing various chemical components.
HDPE’s smooth internal surface minimizes hydraulic friction, which helps optimize flow rates or reduce energy costs associated with water pumping systems, thereby improving the efficiency of the entire water distribution network.
Specification
| GB/T 13663.2-2018 | |||||
| PE100 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| S12.5 | S10 | S8 | S6.3 | S5 | |
| Norminal Diameter DN(mm) | Wall Thickness(mm) | ||||
| 20 | 2.3 | ||||
| 25 | 2.3 | 2.3 | |||
| 32 | 2.3 | 2.4 | 3 | ||
| 40 | 2.3 | 2.4 | 3 | 3.7 | |
| 50 | 2.3 | 2.4 | 3 | 3.7 | 4.6 |
| 63 | 2.5 | 3 | 3.8 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | |
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
| Physical and Chemical Properties of HDPE Water Pipe GB/T 13663.2-2018 |
||||
| Items | Requirement | Test Parameters | Test Method | |
| Melt mass flow rate (g/10min) | The change in MFR before and after processing (not greater than20%） | Unsprung Weight | 5 kg | GB/T 3682.1 |
| test temperature | 190 ℃ | |||
| Oxidation induction time | ≥20 min | Test Temperature | 210 ℃ | GB/T 19466.6-2009 |
| Longitudinal retraction rate | ≤3 % | GB/T 6671-2001 | ||
| Test Temperature | 110 ℃ | |||
| sample length | 200 mm | |||
| Carbon black content | 2.0 %~2.5 % | — | — | GB/T 13021-1991 |
| Carbon black dispersion/pigment dispersion | ≤class 3 | — | — | GB/T 18251-2000 |
| Ash content | ≤0.1 % | Test Temperature | (850±50）℃ | GB/T 9345.1-2008 |
| Elongation at break en≤5 mm |
≥350 % | Sample shape | Type 2 | GB/T 8804.1-2003 |
| Test speed | 100 mm/min | |||
| Elongation at break 5 mm<en≤12 mm |
≥350 % | Sample shape | Type 1 | |
| Test speed | 50 mm/min | |||
| Elongation at break en>12 mm |
≥350 % | Sample shape | Type 1 | |
| Test speed | 25 mm/min | |||
| or | ||||
| Sample shape | Type 3 | |||
| Test speed | 10 mm/min | |||
| Resistant to slow crack growth en≤5 mm (cone test) |
<10 mm/24 h | — | — | GB/T 19279-2003 GB/T 18476-2001 |
| Resistant to slow crack growth en>5 mm (notch test) |
No damage, no leakage | Test Temperature | 80 ℃ | GB/T 19279-2003 GB/T 18476-2001 |
| Internal test pressure: | ||||
| PE80,SDR11 | 0.80 MPa | |||
| PE100,SDR11 | 0.92 MPa | |||
| Testing time | 500 h | |||
| Type of test | Water-Water | |||
| Hydrostatic strength (20 ℃, 100 h) |
No damage, no leakage | Test Temperature | 20 ℃ | GB/T 6111-2003 |
| Testing time | 100 h | |||
| Ring stress: | ||||
| PE80 | 10.0 Mpa | |||
| PE100 | 12.0 Mpa | |||
| Hydrostatic strength (80 ℃, 165 h) |
No damage, no leakage | Test Temperature | 80 ℃ | GB/T 6111-2003 |
| Testing time | 165 h | |||
| Ring stress: | ||||
| PE80 | 4.5 Mpa | |||
| PE100 | 5.4 Mpa | |||
| Hydrostatic strength (80 ℃, 1000 h) |
No damage, no leakage | Test Temperature | 80 ℃ | GB/T 6111-2003 |
| Testing time | 1000 h | |||
| Ring stress: | ||||
| PE80 | 4.0 Mpa | |||
| PE100 | 5.0 Mpa | |||
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Application
High-Density Polyethylene (HDPE) pipes are the ideal piping material choice for applications including drinking water supply, wastewater management, mining operations, industrial fluid transfer systems, power engineering, communications infrastructure, agricultural irrigation, fire protection systems, marine aquaculture, dredging projects, and oil and gas distribution.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
- Water Supply
- Sewerage and Drainage
- Mining
- Chemical Transportation

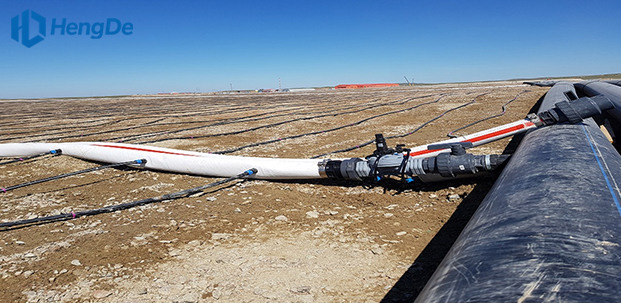

Water Supply
HDPE pipes are made of food-grade virgin polyethylene material, making them safe for the transfer of potable water. These pipes are used in both private and public water supply systems due to their high resistance to corrosion, wear and tear, and chemical exposure.
Inquiry Now

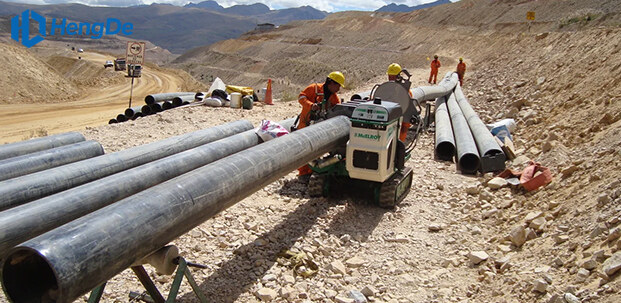

Sewerage and Drainage
HDPE pipes are widely used in sewerage and drainage systems due to their excellent chemical and corrosion resistance. These pipes are sturdy enough to withstand high pressure.
Inquiry Now

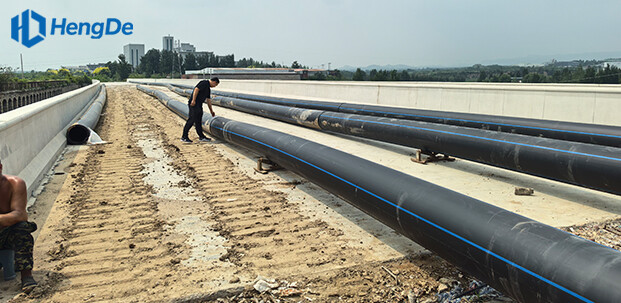

Mining
HDPE pipes are ideally suited for mining applications, such as slurry transport and process water transport. Thanks to their outstanding abrasion and impact resistance, they perform exceptionally well in harsh environments.
Inquiry Now

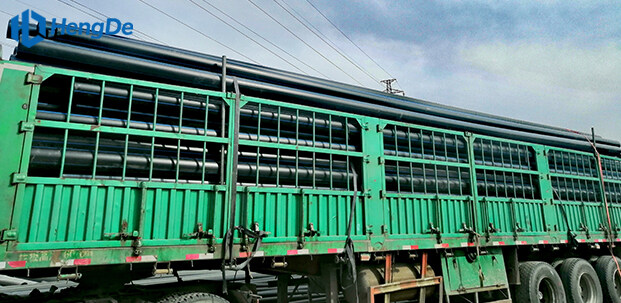

Chemical Transportation
With excellent chemical resistance, HDPE pipes are suitable for the transportation of chemicals and hazardous materials.
