Water Supply Pipe Series

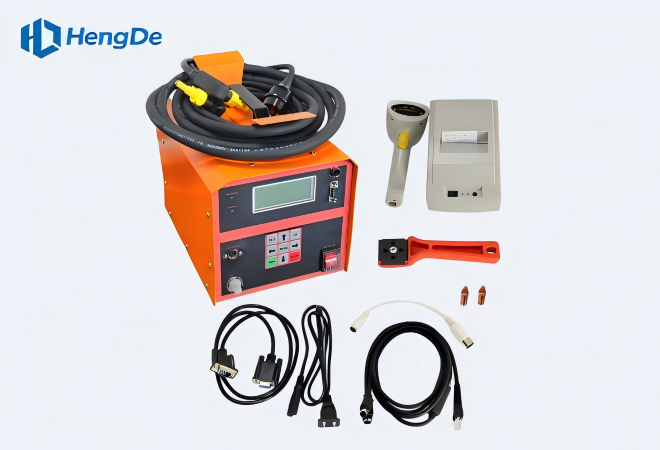

Electro Fusion Welding Machine
  • Electro Fusion Welding Machine

Electro Fusion Welding Machine



Certification

  • Introduction
  • Feature
  • Specification
  • Physical Parameter
  • Application
  • Download

Specification

Type DRB315E
Fusion range 20-315mm
Output Voltage 220V
Frequency 50HZ
Input Voltage AC170-250V
Voltage Control Mode 10-50V
Current Control Mode 1-80A
Power 3500W
Ambient Temperature -150-50
Reletive Humidity ≤80%
Time Adjusting Range 1-9999 seconds
Package wooden case/carton
Size 210mmx320mmx250mm
N.W. 20KG
Type DRB200E
Fusion range 20-200mm
Output Voltage 220V
Frequency 50HZ
Input Voltage AC170-250V
Voltage Control Mode 10-50V
Current Control Mode 1-80A
Power 2500W
Ambient Temperature -150-50
Reletive Humidity ≤80%
Time Adjusting Range 1-9999 seconds
Package wooden case/carton
Size 210mmx320mmx250mm
N.W. 18.5KG

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
