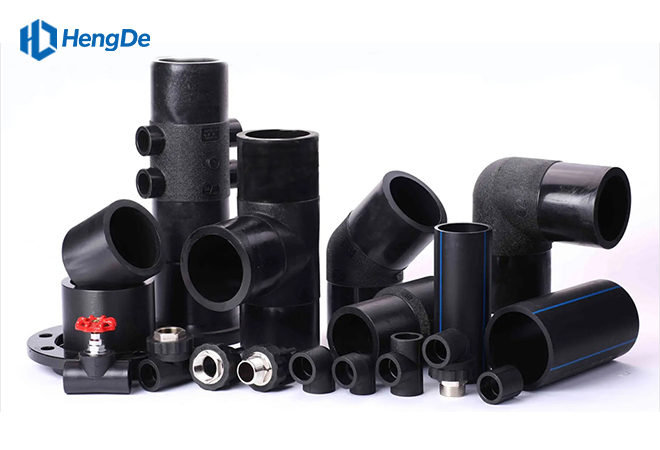

Butt Fusion Welding Fitting

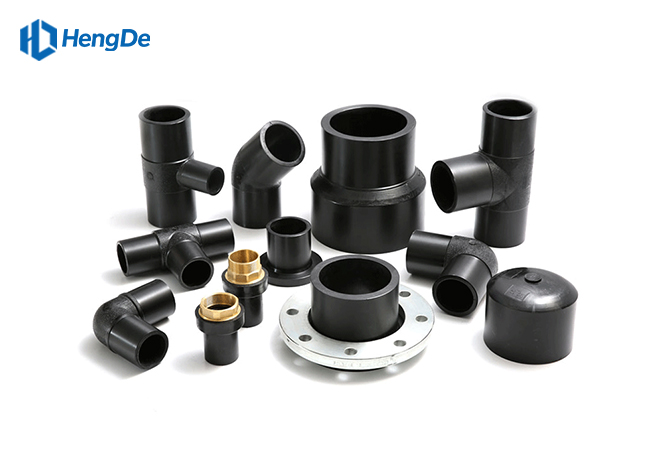

Butt Fusion Welding Fitting

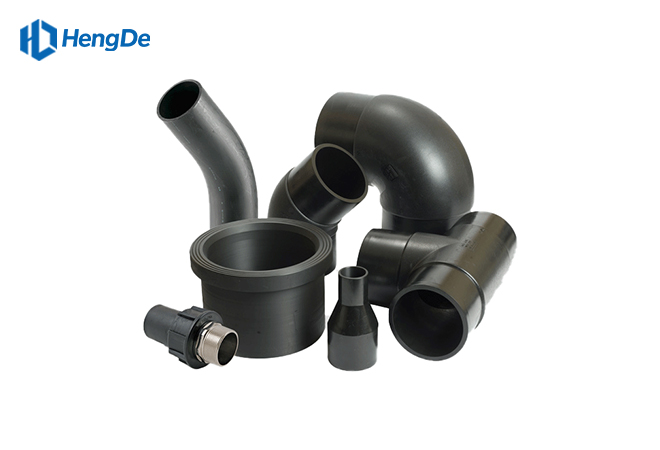

Butt Fusion Welding Fitting

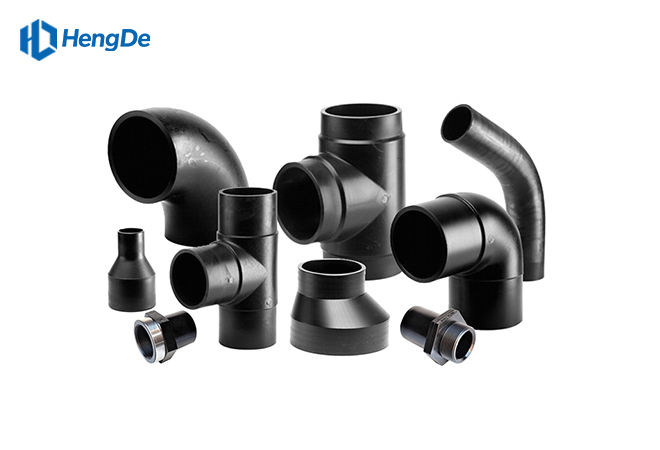

Butt Fusion Welding Fitting
  • Butt Fusion Welding Fitting
  • Butt Fusion Welding Fitting
  • Butt Fusion Welding Fitting
  • Butt Fusion Welding Fitting

Butt Fusion Welding Fitting

1. Dia: DN20-2000mm (1/2 inch-80 inch).

2. Pressure Class: PN10, PN12.5, PN16, PN20, PN25.

3. Packing: Packaged by cartons or bags.

4. Delivery: In Stock, Quick Deliery.

5. CO (Certificate of Origin): China, CO could be provided.

6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Certification

Request a Quote Send Email
  • Introduction
  • Feature
  • Specification
  • Physical Parameter
  • Application
  • Download

Introduction

HDPE Butt Fusion Welding Fittings are engineered for joining HDPE pipes via the butt fusion process—and the specified SDR value pipe must correspond to the same SDR value pipe fitting during welding.

All PE butt fusion fittings are made of 100% virgin PE100/PE80 resin, PE pipes with the same outer diameter but different specified wall thicknesses,different SDR can butt against each other under special conditions after consulting with the pipe manufacturer.

Butt fusion can be used for jointing pipes and fittings 63mm diameter and larger. However it is most commonly used for larger diameter pipes. Butt fusion jointing is equally suited to both coiled pipes and straight pipe lengths.

Use the HDPE pipe butt welding machine to fuse the two ends at a certain temperature and time, then remove the heating plate and bond the two ends tightly together under a fixed pressure until it cools.

Available Types & Sizes

Fitting Types: Elbows (45°/90°), Tees (equal/reducing), Couplings, Reducers (concentric/eccentric), End Caps, Branch Saddles, Flange Adapters, etc.

Size Range: DN63 (2.5") to DN1600 (63"

Pressure Ratings: PN10 (SDR17), PN16 (SDR11), PN20 (SDR9), PN25 (SDR7.4)

Material Grades: PE100 (MRS 10 MPa) / PE80 (MRS 8 MPa)

Colors: Standard black

Technical Specifications

Material: Virgin HDPE resin (PE100/PE80) with consistent melt flow rate (MFR)

Certifications: ISO9001, ISO14001,CE...

Manufacturing Process: Injection molding (small sizes) / extrusion molding (large sizes) for uniform wall thickness

Operating Temperature: -40°C (minimum) to +60°C (continuous service)

Factory visits and third-party inspections are welcome.

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

Butt Fusion Welding Fitting
Butt Fusion Welding Fitting
Butt Fusion Welding Fitting
Butt Fusion Welding Fitting

Feature

Benefits of (High Density Polyethylene) Butt Fusion Welding Fitting

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

01

Seamless Butt Fusion Joint: Joint strength equals or exceeds pipe body; eliminates leaks, corrosion, and external contamination.

02

High-Pressure Performance: Designed for PN10-PN25 (SDR17-SDR9) pressure ratings; ideal for high-demand systems.

03

Large-Diameter Compatibility: Suitable for DN63-DN1600 pipes (2.5"-63")—perfect for large-scale infrastructure.

04

Extreme Durability: Resists impact, ground movement, and temperature fluctuations (-40°C to 60°C)

05

Chemical & Corrosion Resistance: Unaffected by acids, alkalis, salts, and industrial fluids; safe for potable water and aggressive media.

06

Long Service Life: 50-year design life under normal operating conditions (per ISO 9080).

07

Low Maintenance: No gaskets, bolts, or replacement parts—reduces lifecycle costs.

08

Efficient Flow: Smooth inner walls minimize pressure loss and energy consumption.

Specification

Equal Tee
Size D(mm) D1(mm) L(mm) L1(mm) L2(mm) H(mm)
T63/SDR11 63 63 180 54 54 120
T75/SDR11 75 75 54 60  60  140
T90/SDR11 90 90 224 60 60 157
T110/SDR17 110 110 245 62 62 178
T110/SDR13.6 110 110 245 62 62 178
T110/SDR11 110 110 245 62 62 178
T125/SDR13.6 125 125 257 63 63 190
T125/SDR11 125 125 257 63 63 190
T140/SDR17 140 140
T140/SDR13.6 140 140
T140/SDR11 140 140
T160/SDR17 160 160 300 65 65 230
T160/SDR13.6 160 160 300 65 65 230
T160/SDR11 160 160 300 65 65 230
T200/SDR17 200 200 355 70 70 273
T200/SDR13.6 200 200 355 70 70 273
T200/SDR11 200 200 355 70 70 273
T225/SDR17 225 225 388 77 77 310
T225/SDR13.6 225 225 388 77 77 310
T225/SDR11 225 225 388 77 77 310
T250/SDR17 250 250 443 90 90 345
T250/SDR13.6 250 250 443 90 90 345
T250/SDR11 250 250 443 90 90 345
T315/SDR17 315 315 525 97 97 410
T315/SDR13.6 315 315 525 97 97 410
T315/SDR11 315 315 525 97 97 410
T355/SDR17 355 355 555 95 94 450
T355/SDR11 355 355 555 95 94 450
T400/SDR17 400 400 625 105 105 508
T400/SDR11 400 400 625 105 105 508
T500/SDR17 500 500 720 105 105 605
T500/SDR11 500 500 720 605



90DEG Elbow
Size D(mm) L(mm) H1(mm) D1(mm)
L63*90/SDR11 63 120 56 5.9
L75*90/SDR11 75 138 60 6.9
L90*90/SDR11 90 157 60 8.3
L110*90/SDR17 110 179 62 6.7
L110*90(SDR13.6) 110 179 62 8.2
L110*90(SDR11) 110 179 62 10.1
L125*90/SDR13.6 125 195 63 9.3
L125*90/SDR11 125 195 63 11.5
L160*90/SDR17 160 232 65 9.6
L160*90/SDR13.6 160 232 65 11.9
L160*90/SDR11 160 232 65 14.7
L200*90/SDR17 200 275 70 12
L200*90/SDR13.6 200 275 70 14.8
L200*90/SDR11 200 275 70 18.3
L225*90/SDR17 225 305 77 13.5
L225*90/SDR13.6 225 305 77 16.7
L225*90/SDR11 225 305 77 20.6
L250*90/SDR17 250 340 90 14.9
L250*90/SDR13.6 250 340 90 18.5
L250*90/SDR11 250 340 90 22.8
L315*90/SDR17 315 420 97 18.8
L315*90/SDR13.6. 315 420 97 23.3
L315*90/SDR11 315 420 97 28.7
L355*90/SDR17 355 450 95.1 21.2
L355*90/SDR13.6 355 450 95.1 26.2
L355*90/SDR11 355 450 95.1 32.2
L400*90/SDR17 400 510 105 23.7
L400*90/SDR11 400 510 105 36.3
L500*90/SDR17 500 605 105 29.7
L500*90/SDR11 500 605 105 45.4



Stub End
Size D(mm) D1(mm) H(mm) H1(mm) L(mm) L1(mm)
FL63/SDR11 63 87 10.0  5.9  80 70
FL75/SDR11 75 105 12.0  6.9  80 70
FL90/SDR13.6 90 122 13.0  6.8  83 70
FL90/SDR11 90 122 13.0  8.2  83 70
FL110/SDR13.6 110 145 15.0  8.5  90 75
FL110/SDR11 110 145 15.0  10.0  90 75
FL125/SDR13.6 125 155 16.0  9.3  92 78
FL125/SDR11 125 155 16.0  11.3  92 78
FL140/SDR13.6 140 178 17.0  10.4  103 85
FL140/SDR11 140 178 17.0  13.1  103 85
FL160/SDR13.6 160 200 19.0  11.7  105 85
FL160/SDR11 160 200 19.0  14.5  105 85
FL180/SDR13.6 180 220 20.0  13.4  110 90
FL180/SDR11 180 220 20.0  16.6  110 90
FL200/SDR13.6 200 247 22.0  14.8  115 92
FL200/SDR11 200 247 22.0  18.6  115 92
FL225/SDR17 225 270 23.4  13.4  118 95
FL225/SDR13.6 225 270 23.4  16.8  118 95
FL225/SDR11 225 270 23.4  21.0  118 95
FL250/SDR17 250 300 25.0  15.1  122 95
FL250/SDR13.6 250 300 25.0  19.0  122 95
FL250/SDR11 250 300 25.0  23.0  122 95
FL280/SDR17 280 330 27.5  16.7  136 110
FL280/SDR13.6 280 330 27.5  20.8  136 110
FL280/SDR11 280 330 27.5  25.5  136 110
FL315/SDR17 315 362 29.0  19.0  145 115
FL315/SDR13.6 315 364 29.0  23.5  145 115
FL315/SDR11 315 362 29.0  29.2  145 115
FL355/SDR17 355 410 30.0  21.0  155 125
FL355/SDR13.6 355 410 30.0  26.5  155 125
FL355/SDR11 355 412 30.0  32.5  155 125
FL400/SDR17 400 474 33.0  24.5  172 135
FL400/SDR13.6 400 474 33.0  30.2  172 135
FL400/SDR11 400 474 33.0  37.0  172 135
FL450/SDR17 450 524 33.0  27.0  164 127
FL450/SDR13.6 450 164 127
FL450/SDR11 450 524 33.0  41.2  164 127
FL500/SDR17 500 562 41.0  30.5  182 138
FL500/SDR11 500 562 41.0  46.5  182 138
FL560/SDR17 560 620 41.5  33.8  185 140
FL560/SDR11 560 620 41.5  52.4  185 140
FL630/SDR17 630 690 47.0  38.1  200 150
FL630/SDR11 630 690 47.0  58.3  200 150



45DEG Elbow
Size D(mm) L(mm) H(mm) D1(mm)
L75*45/SDR11 75 158 58 6.9
L90*45/SDR11 90 175 60 8.3
L110*45/SDR13.6 110 195 62 8.2
L110*45/SDR11 110 195 62 10.1
L125*45/SDR13.6 125 200 63 9.3
L125*45/SDR11 125 200 63 11.5
L160*45/SDR13.6 160 235 65 11.9
L160*45/SDR11 160 235 65 14.7
L200*45/SDR13.6 200 265 70 14.8
L200*45/SDR11 200 265 70 18.3
L225*45/SDR17 225 295 77 13.5
L225*45/SDR13.6 225 295 77 16.7
L225*45/SDR11 225 295 77 20.5
L250*45/SDR17 250 338 90 14.9
L250*45/SDR13.6 250 338 90 18.5
L250*45/SDR11 250 338 90 22.8
L315*45/SDR17 315 400 97 18.8
L315*45/SDR13.6 315 400 97 23.3
L315*45/SDR11 315 400 97 28.7
L355*45/SDR17 355 442 95 21.2
L355*45/SDR11 355 442 95 32.3
L400*45/SDR17 400 472 105 23.8
L400*45/SDR11 400 472 105 36.4
L500*45/SDR17 500 29.8
L500*45/SDR11 500 45.5



Reducer
Size(mm) D(mm) D1(mm) L (mm) L1 (mm) L2 (mm) H(mm) H1(mm)
S75*50/SDR11 75 50 120 54 54 6.9 4.7
S75*63/SDR11 75 63 120 54 54 6.9 5.9
S90*50/SDR11 90 50 130 58 58 8.3 4.7
S90*63/SDR11 90 63 130 58 58 8.3 5.9
S90*75/SDR11 90 75 130 58 58 8.3 6.8
S110*50/SDR13.6 110 50 133 60 60 8.2 3.9
S110*50/SDR11 110 50 133 60 60 10.1 4.7
S110*63/SDR13.6 110 63 133 60 60 8.2 4.7
S110*63/SDR11 110 63 133 60 60 10.1 5.9
S110*75/SDR13.6 110 75 133 60 60 8.2 5.6
S110*75/SDR11 110 75 133 60 60 10.1 6.8
S110*90/SDR13.6 110 90 133 60 60 8.2 6.7
S110*90/SDR11 110 90 133 60 60 10.1 8.2
S125*63/SDR13.6 125 63 142 63 63 9.2 4.7
S125*63/SDR11 125 63 142 63 63 11.4 5.9
S125*75/SDR13.6 125 75 135 63 63 9.2 5.6
S125*75/SDR11 125 75 135 63 63 11.4 6.8
S125*90/SDR13.6 125 90 135 63 63 9.2 6.7
S125*90/SDR11 125 90 135 63 63 11.4 8.2
S125*110/SDR13.6 125 110 135 63 63 9.2 8.1
S125*110/SDR11 125 110 135 63 63 11.4 10
S160*63/SDR13.6 160 63 165 67 67 11.8 4.7
S160*63/SDR11 160 63 165 67 67 14.6 5.9
S160*75/SDR13.6 160 75 158 65 65 11.8 5.6
S160*75/SDR11 160 75 158 65 65 14.6 6.8
S160*90/SDR13.6 160 90 153 65 65 11.8 6.7
S160*90/SDR11 160 90 153 65 65 14.6 8.2
S160*110*SDR13.6 160 110 150 65 65 11.8 8.1
S160*110/SDR11 160 110 150 65 65 14.6 10
S160*125/SDR13.6 160 125 145 66 66 11.8 9.2
S160*125/SDR11 160 125 145 66 66 14.6 11.4
S200*63/SDR13.6 200 63 178 75 62 14.7 4.7
S200*63/SDR11 200 63 178 75 62 18.2 5.9
S200*75/SDR13.6 200 75 180 75 65 14.7 5.6
S200*75/SDR11 200 75 180 75 65 18.2 6.8
S200*90/SDR13.6 200 90 178 75 67 14.7 6.7
S200*90/SDR11 200 90 178 75 67 18.2 8.2
S200*110/SDR13.6 200 110 174 74 70 14.7 8.1
S200*110/SDR11 200 110 174 74 70 18.2 10
S200*125/SDR13.6 200 125 172 75 70 14.7 9.2
S200*125/SDR11 200 125 172 75 70 18.2 11.4
S200*160/SDR13.6 200 160 160 75 70 14.7 11.8
S200*160/SDR11 200 160 160 75 70 18.2 14.6
S250*90/SDR13.6 250 90 192 80 70 18.4 6.7
S250*90/SDR11 250 90 192 80 70 22.7 8.2
S250*110/SDR13.6 250 110 188 80 70 18.4 8.1
S250*110/SDR11 250 110 188 80 70 22.7 10
S250*160/SDR13.6 250 160 182 80 80 18.4 11.8
S250*160/SDR11 250 160 182 80 80 22.7 14.6
S250*200/SDR13.6 250 200 175 80 80 18.4 14.7
S250*200/SDR11 250 200 175 80 80 22.7 18.2
S315*110/SDR17 315 110 198 88 65 18.7 6.6
S315*110/SDR11 315 110 198 88 65 28.6 10
S315*160/SDR17 315 160 200 88 77 18.7 9.5
S315*160/SDR11 315 160 200 88 77 28.6 14.6
S315*200/SDR17 315 200 190 90 77 18.7 11.9
S315*200/SDR11 315 200 190 90 77 28.6 18.2
S315*250/SDR17 315 250 189 90 85 18.7 14.8
S315*250/SDR11 315 250 189 90 85 28.6 22.7



Reducing Tee
Size(mm) D(mm) D1(mm) L (mm) H(mm)
T63*50/SDR11 63 50
T75*50/SDR11 75 50 193 138
T75*63/SDR11 75 63 193 138
T90*40/SDR11 90 40 197 155
T90*50/SDR11 90 50 197 155
T90*63/SDR11 90 63 197 155
T90*75/SDR11 90 75 210 155
T110*40/SDR11 110 40 203 178
T110*50/SDR13.6 110 50 203 178
T110*50/SDR11 110 50 203 178
T110*63/SDR13.6 110 63 203 178
T110*63/SDR11 110 63 203 178
T110*75/SDR13.6 110 75 225 178
T110*75/SDR11 110 75 225 178
T110*90/SDR13.6 110 90 226 178
T110*90/SDR11 110 90 226 178
T125*50/SDR13.6 125 50 192 190
T125*50/SDR11 125 50 192 190
T125*63/SDR13.6 125 63 192 190
T125*63/SDR11 125 63 192 190
T125*75/SDR13.6 125 75 205 190
T125*75/SDR11 125 75 205 190
T125*90/SDR13.6 125 90 220 190
T125*90/SDR11 125 90 220 190
T125*110/SDR13.6 125 110 240 190
T125*110/SDR11 125 110 240 190
T140*110/SDR13.6 140 110
T160*50/SDR17 160 50 205 230
T160*50/SDR13.6 160 50 205 230
T160*50/SDR11 160 50 205 230
T160*63/SDR17 160 63 210 230
T160*63/SDR13.6 160 63 210 230
T160*63/SDR11 160 63 210 230
T160*75/SDR17 160 75 217 230
T160*75/SDR13.6 160 75 217 230
T160*75/SDR11 160 75 217 230
T160*90/SDR17 160 90 237 230
T160*90/SDR13.6 160 90 237 230
T160*90/SDR11 160 90 237 230
T160*110/SDR17 160 110 250 230
T160*110/SDR13.6 160 110 250 230
T160*110/SDR11 160 110 250 230
T160*125/SDR13.6 160 125 267 230
T160*125/SDR11 160 125 267 230
T200*50/SDR17 200 50 230 273
T200*50/SDR13.6 200 50 217 277
T200*50/SDR11 200 50 217 277
T200*63/SDR17 200 63 230 273
T200*63/SDR13.6 200 63 217 277
T200*63/SDR11 200 63 217 277
T200*75/SDR17 200 75 245 277
T200*75/SDR13.6 200 75 245 277
T200*75/SDR11 200 75 245 277
T200*90/SDR17 200 90 245 277
T200*90/SDR13.6 200 90 245 277
T200*90/SDR11 200 90 245 277
T200*110/SDR17 200 110 264 277
T200*110/SDR13.6 200 110 264 277
T200*110/SDR11 200 110 264 277
T200*125/SDR17 200 125 315 273
T200*140/SDR17 200 140 315 273
T200*160/SDR17 200 160 315 273
T200*160/SDR13.6 200 160 315 277
T200*160/SDR11 200 160 315 277
T225*63/SDR17 225 63 237 295
T225*63/SDR13.6 225 63 237 295
T225*63/SDR11 225 63 237 295
T225*75/SDR17 225 75 237 295
T225*75/SDR13.6 225 75 237 295
T225*75/SDR11 225 75 237 295
T225*90/SDR17 225 90 274 295
T225*90/SDR13.6 225 90 274 295
T225*90/SDR11 225 90 274 295
T225*110/SDR17 225 110 274 295
T225*110/SDR13.6 225 110 274 295
T225*110/SDR11 225 110 274 295
T225*160/SDR17 225 160 320 295
T225*160/SDR13.6 225 160 320 295
T225*160/SDR11 225 160 320 295
T225*200/SDR17 225 200 358 295
T225*200/SDR13.6 225 200 358 295
T225*200/SDR11 225 200 358 295
T250*63/SDR17 250 63 300 335



Reducing Tee
Size(mm) D(mm) D1(mm) L (mm) H(mm)
T250*63/SDR13.6 250 63 300 335
T250*63/SDR11 250 63 300 335
T250*75/SDR17 250 75 300 335
T250*75/SDR13.6 250 75 300 335
T250*75/SDR11 250 75 300 335
T250*90/SDR17 250 90 300 335
T250*90/SDR13.6 250 90 300 335
T250*90/SDR11 250 90 300 335
T250*110/SDR17 250 110 303 335
T250*110/SDR13.6 250 110 303 335
T250*110/SDR11 250 110 303 335
T250*160/SDR17 250 160 353 332
T250*160/SDR13.6 250 160 353 332
T250*160/SDR11 250 160 353 332
T250*200/SDR17 250 200 390 335
T250*200/SDR13.6 250 200 390 335
T250*200/SDR11 250 200 390 335
T315*90/SDR17 315 90 320 405
T315*90/SDR13.6 315 90 320 405
T315*90/SDR11 315 90 320 405
T315*110/SDR17 315 110 320 405
T315*110/SDR13.6 315 110 320 405
T315*110/SDR11 315 110 320 405
T315*160/SDR17 315 160 370 367
T315*160/SDR13.6 315 160 370 367
T315*160/SDR11 315 160 370 367
T315*200/SDR17 315 200 410 400
T315*200/SDR13.6 315 200 410 400
T315*200/SDR11 315 200 410 400
T315*250/SDR17 315 250 520 410
T315*250/SDR13.6 315 250 520 410
T315*250/SDR11 315 250 520 410
T355*110/SDR17 355 110 312 445
T355*110/SDR11 355 110
T355*125/SDR17 355 125
T355*125/SDR11 355 125
T355*140/SDR17 355 140
T355*140/SDR11 355 140
T355*160/SDR17 355 160
T355*160/SDR11 355 160
T355*200/SDR17 355 200 400 445
T355*200/SDR11 355 200
T355*250/SDR17 355 250
T355*250/SDR11 355 250
T355*280/SDR17 355 280
T355*280/SDR11 355 280
T355*315/SDR17 355 315 515 455
T355*315/SDR11 355 315
T400*90/SDR17 400 90 437 490
T400*90/SDR11 400 90 437 490
T400*110/SDR17 400 110 440 495
T400*110/SDR11 400 110 440 495
T400*160/SDR17 400 160 440 490
T400*160/SDR11 400 160 440 490
T400*200/SDR17 400 200 440 490
T400*200/SDR11 400 200 440 490
T400*250/SDR17 400 250 475 493
T400*250/SDR11 400 250 475 493
T400*315/SDR17 400 315 540 500
T400*315/SDR11 400 315 540 500
T500*110/SDR17 500 110 328 600
T500*110/SDR11 500 110 328 600
T500*125/SDR17 500 125
T500*125/SDR11 500 125
T500*140/SDR17 500 140
T500*140/SDR11 500 140
T500*160/SDR17 500 160 380 595
T500*160/SDR11 500 160 380 595
T500*180/SDR17 500 180
T500*180/SDR11 500 180
T500*200/SDR17 500 200 415 600
T500*200/SDR11 500 200 415 600
T500*225/SDR17 500 225
T500*225/SDR11 500 225
T500*250/SDR17 500 250 470 602
T500*250/SDR11 500 250 470 602
T500*315/SDR17 500 315 530 600
T500*315/SDR11 500 315 530 600
T500*400/SDR17 500 400 617 600
T500*400/SDR11 500 400 617 600



End Cap
Size D (mm) L (mm) L1 (mm) H (mm)
D75/SDR11 75 72 58 6.9
D90/SDR11 90 80 63 8.6
D110/SDR13.6 110 85 59 8.2
D110/SDR11 110 85 59 10.1
D125/SDR13.6 125 90 62 9.3
D125/SDR11 125 90 62 11.5
D160/SDR13.6 160 100 63 11.9
D160/SDR11 160 100 63 14.7
D200/SDR13.6 200 115 75 14.8
D200/SDR11 200 115 75 18.3
D250/SDR13.6 250 130 82 18.5
D250/SDR11 250 130 82 22.8
D315/SDR17 315 140 87 18.8
D315/SDR11 315 140 87 28.7

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

Physical Parameter

Item Fittings Types Specified Fittings Diameter(mm) Pressure Rates(PN-Bar) Manufacturing Process
1 Butt Fusion Fittings Male Union OD20-63mm 1/2'-2' Injection Molding
Reducer/ Reducing Coupler OD75-630mm PN25, PN20, PN16, PN12.5, PN10
Tee OD63-630mm PN25, PN20, PN16, PN12.5, PN10
Reducer Tee OD75-630mm PN25, PN20, PN16, PN12.5, PN10
90 deg elbow OD63-630mm PN16, PN12.5, PN10
45 deg elbow OD63-630mm PN16, PN12.5, PN10
30 deg elbow OD63-630mm PN16, PN12.5, PN10
22.5 deg elbow OD110-630mm PN16, PN12.5, PN10
End Cap OD75-1200mm PN25, PN20, PN16, PN12.5, PN10
Cross Tee OD63-315mm PN16, PN12.5
Reducer Cross Tee OD90-315mm PN16, PN12.5
Stub End OD50-630mm PN16, PN12.5, PN10
Lateral Tee(45 deg Tee) OD63-160mm PN16

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

Application

Ideal for large-scale, high-performance projects:

Municipal Engineering: Potable water mains, sewage collection, stormwater systems.

Industrial Piping: Chemical transfer, oil/gas pipelines, mining slurry transport.

Agriculture: Large-scale irrigation systems, farm water distribution.

Energy & Utilities: Geothermal heating/cooling, low-pressure gas distribution.

Infrastructure: Bridge culverts, landfill liners, marine piping systems.

Feel free to contact us for product catalogs, quotations and professional technical support.

Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.

Download

Send Message

    Hot Products

    Butt Fusion Welding Fitting

    HDPE Water Supply Pipe
    Standard: GB/T 13663.2-2018

    The full form of HDPE is High-Density Polyethylene. HDPE pipes are made through a process known as extrusion. In this process, HDPE material is heated to a semi-molten state and then forced through a die to form a tube.

    Learn More

    HDPE Water Supply Pipe
    Standard: GB/T 13663.2-2018

    Butt Fusion Welding Fitting

    HDPE Water Supply Pipe
    Standard: ISO 4427-2-2019

    HDPE pipes are widely used in water supply, gas distribution, sewage and drainage systems, and industrial processes.

    Learn More

    HDPE Water Supply Pipe
    Standard: ISO 4427-2-2019

    Butt Fusion Welding Fitting

    Socket Fusion Fitting

    Our HDPE Socket Fusion Fittings are precision-engineered components for joining HDPE pipes using the socket fusion method, where pipe and fitting ends are heated and fused into a monolithic structure.

    Learn More

    Socket Fusion Fitting

    Butt Fusion Welding Fitting

    MPP Power Pipe
    Standard: DL/T 802.7-2023

    Also known as modified polypropylene material, MPP is primarily used to produce MPP power cable pipes.

    Learn More

    MPP Power Pipe
    Standard: DL/T 802.7-2023

    Butt Fusion Welding Fitting

    Socket Fusion Welding Machine

    Learn More

    Socket Fusion Welding Machine

    Butt Fusion Welding Fitting

    HDPE Water Supply Pipe
    Standard: DIPS

    The tube is then cooled to solidify the material and cut to the desired length. This process ensures consistent quality and high durability of the final product.

    Learn More

    HDPE Water Supply Pipe
    Standard: DIPS

    Send Message

    If you have any questions, please submit the form below to contact us

      Home WhatsApp Mail Inquiry
