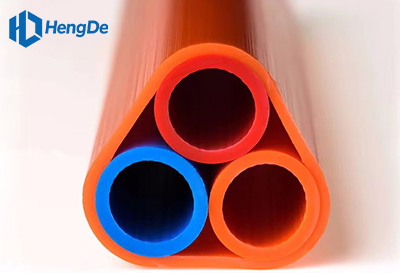

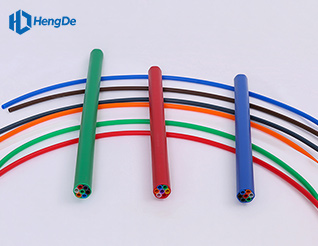

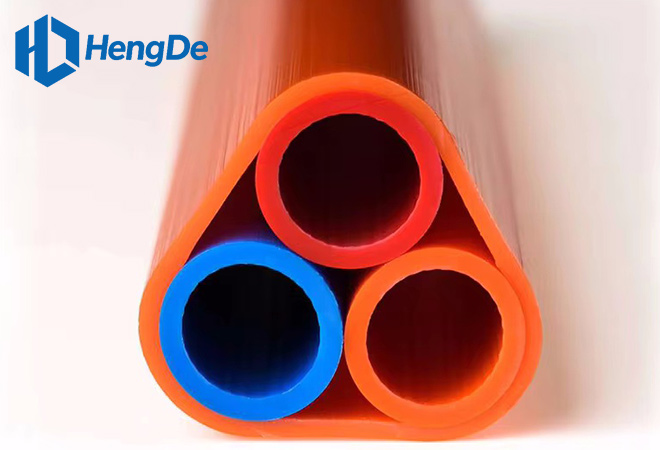

3 Way HDPE Tube Bundle Micro Duct
Standard: JT/T 496-2018
1.Size: 4*12/9, 7*12/9, 4*14/10, 7*14/10, etc.
2.Length: Coil Length 1000m A Roll.
3.Material: PE100.
4.Standard: JT/T496-2018.
5.Delivery: 10-20 days depending on the total quantity.
- Introduction
- Feature
- Specification
- Physical Parameter
- Application
- Download
Introduction

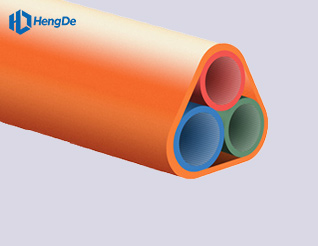

The HDPE bundle pipe usually consists of several microtubes and an outer protection tube. The outer protection tube is made of high-density polyethylene (HDPE), which has excellent corrosion resistance, abrasion resistance and impact resistance. Microtubes are generally small-diameter plastic tubes, which can house different quantities and specifications of fiber optic cables or electrical cables according to actual needs.
Description of HDPE (High Density Polyethylene) Micro Duct Pipe

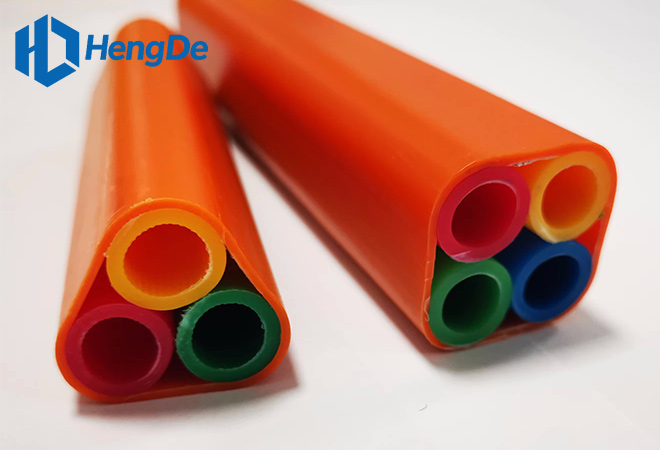

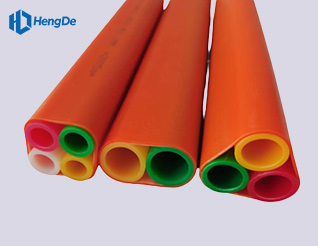

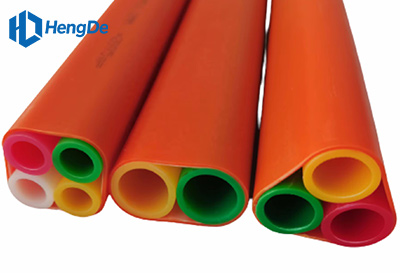

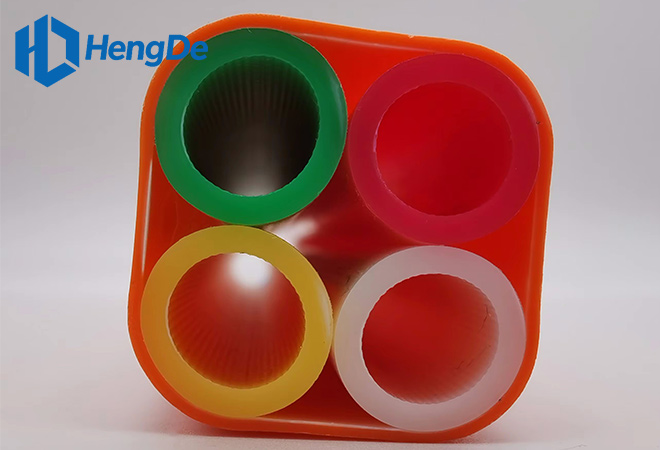

The HDPE bundle tube is an assembly of a specific number of microtubes, with these multiple microtubes encased in an HDPE outer sheath of 1–3.5 mm thickness. It maximizes tube capacity within the available space, and offers a variety of tube-count configurations to meet custom requirements. Micro cables can be blown into and out of any individual microtube with ease. It features a broad applicable temperature range of -60~70 ℃ and a construction temperature range of -10~40 ℃. Boasting an extended service life, it can withstand long-term sunlight exposure with a lifespan of over 50 years, which effectively prolongs the service life of the optical cables installed inside.

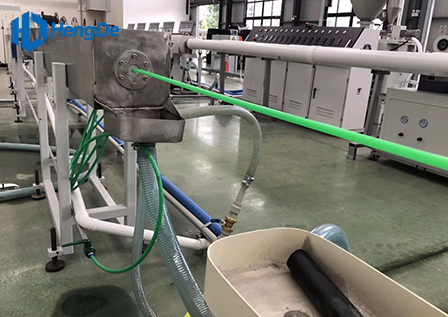

Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Feature
Benefits of HDPE (High Density Polyethylene) Micro Duct Pipe
· Made of high-density polyethylene, HDPE bundle pipes offer high hardness and tensile strength, enabling them to withstand heavy external loads.
· HDPE material boasts excellent chemical stability and strong resistance to acidic, alkaline, saline and other chemical substances.
· HDPE bundle pipes have good flexibility and can be bent as per construction requirements.
· The inner walls of bundle pipes are smooth with a low friction coefficient (generally < 0.2), which facilitates the blowing and laying of cables. This greatly improves construction efficiency and minimizes cable damage during installation.

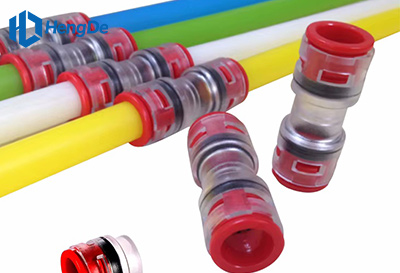

· HDPE bundle pipes adopt a special sealing structure and connection method, which effectively protect cables from water ingress.
· The raw materials of HDPE bundle pipes are non-toxic and harmless. They do not cause environmental pollution during production, application and disposal, and fully comply with environmental protection standards.
Colour can be customized

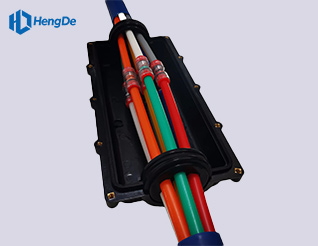

Joint Seal

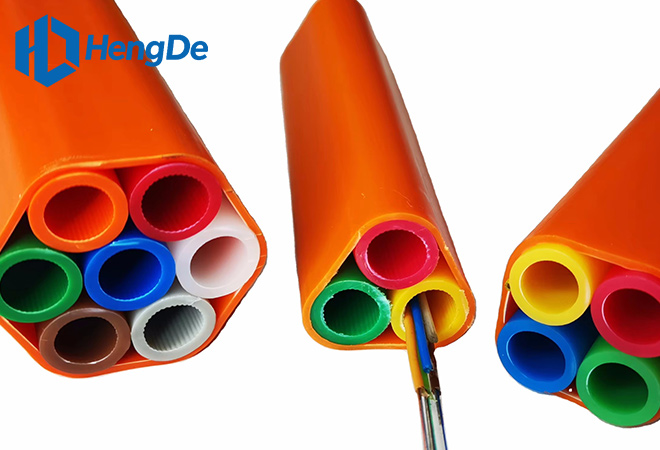

Specifications can be customized
Factory visits and third-party inspections are welcome.
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Specification
| Specification | Outside diameter dem/mm |
Wall thickness and tolerance mm |
Out-of-roundness % |
|||
| Nominal value | Tolerance | Standard Value | Tolerance | Before Coiling | After Coiling | |
| ∅16/13a | 16 | +0.2 | 1.5 | +0.20 | ≤3 | ≤5 |
| 0 | -0.15 | |||||
| ∅25/21b | 25 | +0.3 | 2.0 | +0.20 | ≤3 | ≤5 |
| 0 | -0.15 | |||||
| ∅32/26 | 32 | +0.3 | 2.5 | +0.30 | ≤2 | ≤3 |
| 0 | -0.20 | |||||
| ∅33/28×4c | 33 | - | 2.5 | +0.30 | ≤2 | ≤3 |
| -0.20 | ||||||
| ∅34/28 | 34 | +0.3 | 3.0 | +0.30 | ≤2 | ≤3 |
| 0 | -0.15 | |||||
| ∅38/33×5c | 38 | - | 2.5 | +0.30 | ≤2.5 | ≤3.5 |
| -0.20 | ||||||
| ∅40/33 | 40 | +0.4 | 3.5 | +0.35 | ≤2.5 | ≤3.5 |
| 0 | -0.20 | |||||
| ∅41/36×6(7)c | 41 | - | 2.5 | +0.35 | ≤2.5 | ≤3.5 |
| -0.20 | ||||||
| ∅46/38 | 46 | +0.4 | 4.0 | +0.35 | ≤3 | ≤5 |
| 0 | -0.20 | |||||
| ∅50/41 | 50 | +0.5 | 4.5 | +0.40 | ≤3 | ≤5 |
| 0 | -0.30 | |||||
| ∅63/54 | 63 | +0.6 | 5.0 | +0.40 | ≤3 | ≤5 |
| 0 | -0.30 | |||||
| Note: 1. The specification dimensions and tolerances of ribbed pipes shall be determined through negotiation between the supplier and the buyer. 2. The specification dimensions, model numbers and tolerances of other products shall be determined through negotiation between the supplier and the buyer. |
||||||
| a Microducts for installation inside bundle ducts. b Communication sub-ducts suitable for installation inside large-diameter protective ducts. c Outer sheaths suitable for bundle ducts. |
||||||
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Physical Parameter
| Physical and Chemical Properties of HDPE Bundle Pipe JT/T 496-2018 |
||||
| Items | Technical Index | |||
| Φ33/28 | Φ38/33 | Φ41/36 | ||
| Outer Wall Hardness（HD） | ≥59 | |||
| Tensile Yield Strength（MPa） | ≥21 | |||
| Elongation at break（%） | ≥500 | |||
| Ring-Stiffness（KN/㎡） | ≥40 | ≥50 | ||
| Recovery Rate | When the outer diameter deformation is 50% of the original outer diameter under vertical pressure, the load is immediately unloaded, the sample is not broken, not stratified, and the outer diameter can be naturally restored to more than 85% of the original in 10min. | |||
| Resistance to drop hammer impact | Normal Temperature | The temperature is 23℃, the height is 2m, and 10 samples are impacted with a heavy hammer of 15.3kg. If a single sample does not break or the crack width is not greater than 0.8mm, it is regarded as passing, and the number of passing samples should not be less than 9 | ||
| Low Temperature | The temperature is -20℃, the height is 2m, and 10 samples are impacted with a heavy hammer of 15.3kg. If a single sample does not break or the crack width is not greater than 0.8mm, it is regarded as passing, and the number of passing samples should not be less than 9. | |||
| Longitudinal elongation（%） | ≤3.0 | |||
| Brittle Temperature（℃） | -75 | |||
| Resistance to environmental stress cracking | 48h,failure rate≤20% | |||
| Melt Flow Rate（MFR）(g/10min) | MFR(190/2.16)≤0.5 | |||
| Resistant to chemical media | The samples were soaked in 5% NaCL, 40% H₂SO₄, and 40% NaOH solutions respectively for 24h. No obvious discoloration or corrosion was observed. | |||
Feel free to contact us for product catalogs, quotations and professional technical support.
Please contact us by email: sales@hengdepipes.com or WhatsApp: +86 15265578500.
Application

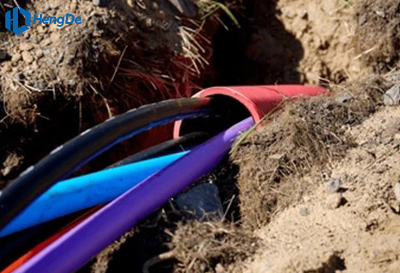

· Highway Communication Projects
As a key component of highway communication systems, HDPE bundle pipes are used to protect communication optical cables and ensure unobstructed highway communication.
· Railway Communication & Signal Systems
In railway communication and signal systems, HDPE bundle pipes can serve as protective sleeves for optical cables, enhancing the reliability of railway communication.
· Urban Underground Utility Tunnel Projects

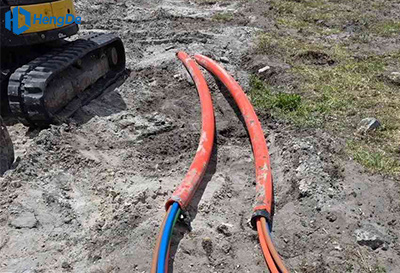

Amid the construction of urban underground utility tunnels, HDPE bundle pipes can be deployed as dedicated pipelines for communication optical cables to realize intensive resource utilization.
